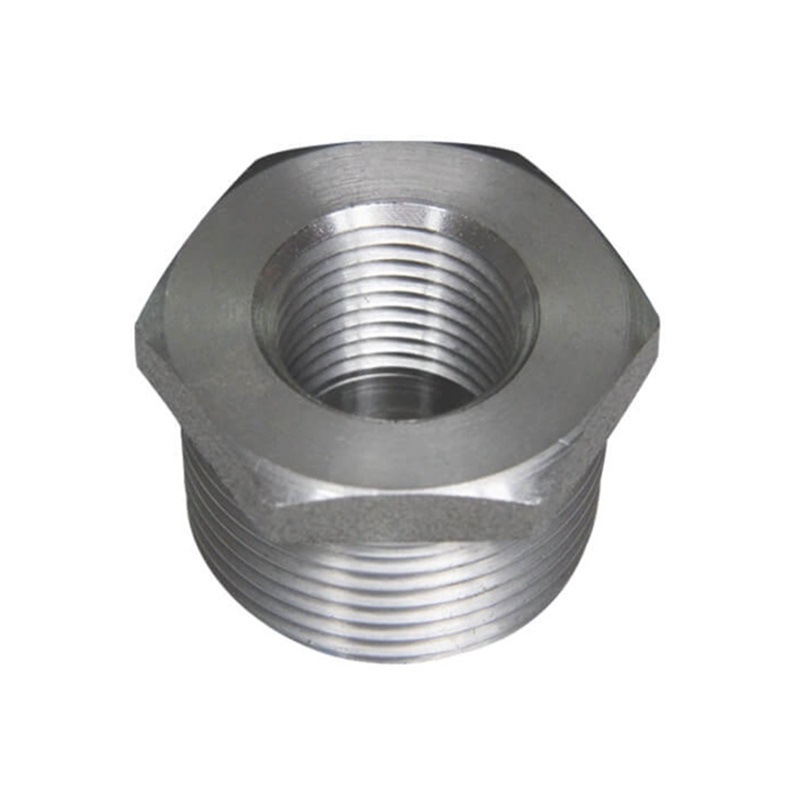

Forged hex head bushing

سمات:

Certificate: ISO

American Standard: ASME B16.11

Material: Carbon steel ASTM A 105 / Stainless steel

Type: Forged fitting

Thread: NPT / BSPT

W.pressure: Class 3000

Surface: Original / hot dip galvanized

الدردشة الآن

تفاصيل المنتج

Forged hex head bushing is used to join two pipes with different size. Forged Threaded hex head bushing is with both male and female threaded connections for high pressure pipe line

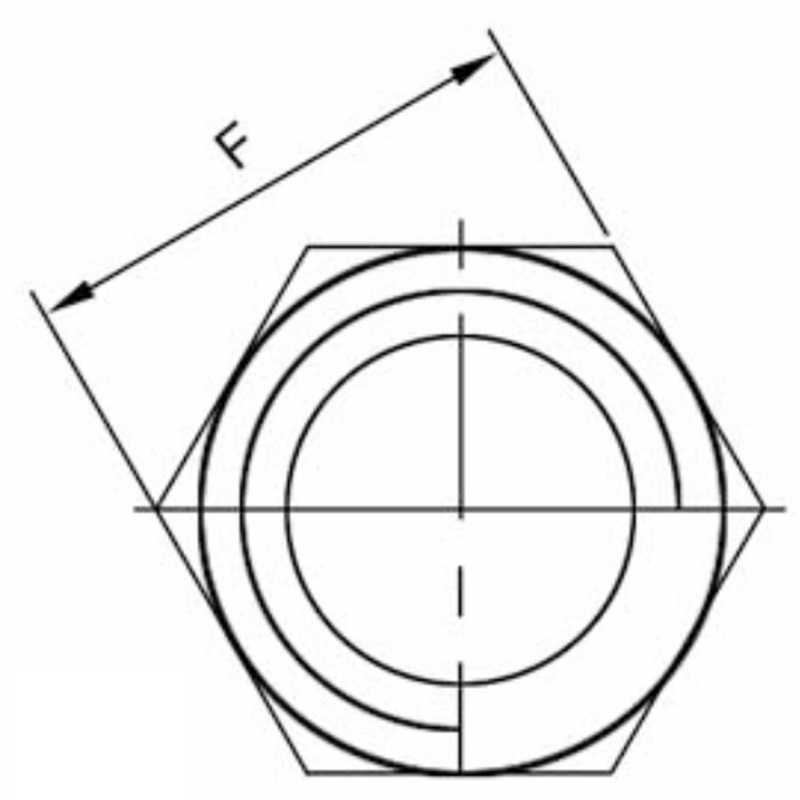

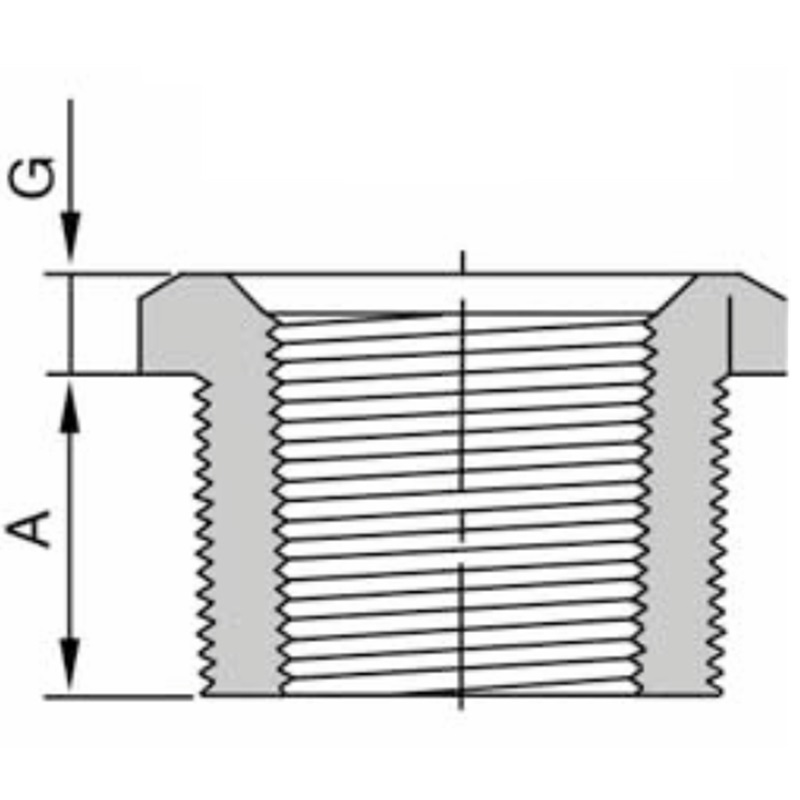

مقاس		Length	Hex Height	Hex Width Flats
NPS	DN	A min	G min	F min
1/4”	8	11	3	16
3/8”	10	13	4	18
1/2”	15	14	5	22
3/4”	20	16	6	27
1”	25	19	6	36
1-1/4”	32	21	7	46
1-1/2”	40	21	8	50
2 بوصة	50	22	9	65
2-1/2 بوصة	65	27	10	75
3 بوصة	80	28	10	90
4 بوصة	100	32	13	115
