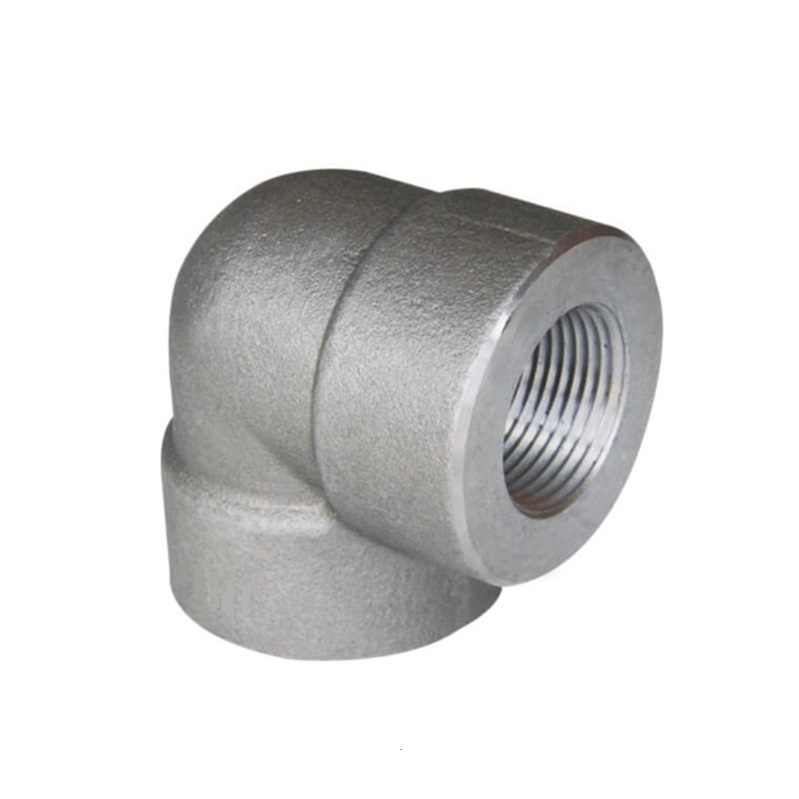

Forged thread 90° elbow

سمات:

Certificate: ISO

American Standard: ASME B16.11

Material: Carbon steel ASTM A 105 / Stainless steel

Type: Forged fitting

Thread: NPT / BSPT

W.pressure: Class 2000 / 3000 / 6000

Surface: Original / hot dip galvanized

الدردشة الآن

تفاصيل المنتج

Forged thread 90°elbow is used to change the direction of flow in a piping system by 90 degrees by threading connection for high pressure pipeline.

مقاس		Center to end أ			Outside Dia. Of Band ح			Wall Thickness G min			Length of Thread
NPS	DN	2000LB	3000 LB	6000 LB	2000LB	3000 LB	6000 LB	2000LB	3000 LB	6000 LB	L5 min	L2 min
1/8”	6	21	21	25	22	22	25	3.18	3.18	6.35	6.4	6.7
1/4”	8	21	25	28	22	25	33	3.18	3.30	6.60	8.1	10.2
3/8”	10	25	28	33	25	33	38	3.18	3.51	6.98	9.1	10.4
1/2”	15	28	33	38	33	38	46	3.18	4.09	8.15	10.9	13.6
3/4”	20	33	38	44	38	46	56	3.18	4.32	8.53	12.7	13.9
1”	25	38	44	51	46	56	62	3.68	4.98	9.93	14.7	17.3
1-1/4”	32	44	51	60	56	62	75	3.89	5.28	10.59	17.0	18.0
1-1/2”	40	51	60	64	62	75	84	4.01	5.56	11.07	17.8	18.4
2 بوصة	50	60	64	83	75	84	102	4.27	7.14	12.09	19.0	19.2
2-1/2 بوصة	65	76	83	95	92	102	121	5.61	7.65	15.29	23.6	28.9
3 بوصة	80	86	95	106	109	121	146	5.99	8.84	16.64	25.9	30.5
4 بوصة	100	106	114	114	146	152	152	6.55	11.18	18.67	27.7	33.0
