Grooved concentric reducer with threaded outlet

Rillet koncentrisk reduktionsgevind med gevindudløb

Funktioner:

Certifikat: FM-godkendt / UL-listet / LPCB

Størrelse: 2”*1” – 8”*4” (DN 50*25 – DN 200*100)

Tryk: 300PSI

Materiale: ASTM A536, GRADE 65-45-12, QT450-10

Gevind: ASME B1.20.1, ISO 7-1, GB 7306

Rille: AWWA C606, ISO 6182-12

Overflade: P: Malet E: Galvaniseret B: Sort S: Epoxy G: Varmgalvaniseret

Chat nu

Produktdetaljer

Rillet koncentrisk reduktionsgevind med gevindudløb er kegleformet rørfitting med rille og indvendig gevindforbindelse, og den bruges til at forbinde to rør med forskellig diameter på samme akse.

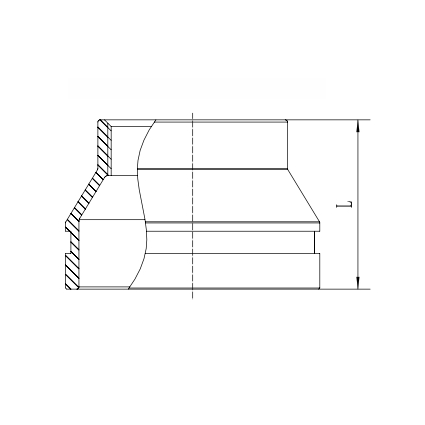

STØRRELSE		OD STØRRELSE	L (MM)
2" × 1"	DN50×DN25	60,3X33,7	64
2" × 1 1/4"	DN50×DN32	60,3X42,4	64
2" × 1 1/2"	DN50×DN40	60,3X48,3	64
2 1/2" × 1"	DN65×DN25	73,0X33,7	64
2 1/2" × 1 1/4"	DN65×DN32	73.0X42.4	64
2 1/2" × 1 1/2"	DN65×DN40	73,0X48,3	64
2 1/2" × 2"	DN65×DN50	73,0X60,3	64
2 1/2" × 1"	DN65×DN25	76,1X33,7	64
2 1/2" × 1 1/4"	DN65×DN32	76,1X42,4	64
2 1/2" × 1 1/2"	DN65×DN40	76,1X48,3	64
2 1/2" × 2"	DN65×DN50	76,1X60,3	64
3" × 1"	DN80×DN25	88,9X33,7	64
3" × 1 1/4"	DN80×DN32	88,9X42,4	64
3" × 1 1/2"	DN80×DN40	88,9X48,3	64
3"×2"	DN80×DN50	88,9X60,3	64
3" × 2 1/2"	DN80×DN65	88,9X73,0	64
3" × 2 1/2"	DN80×DN65	88,9X76,1	64
4" × 1"	DN100×DN25	108,0X33,7	76
4" × 1 1/4"	DN100×DN32	108.0X42.4	76
4" × 1 1/2"	DN100×DN40	108.0X48.3	76
4"×2"	DN100×DN50	108.0X60.3	76
4" × 2 1/2"	DN100×DN65	108.0X76.1	76
4" × 3"	DN100×DN80	108.0X88.9	76
4" × 1"	DN100×DN25	114,3X33,7	76
4" × 1 1/4"	DN100×DN32	114,3X42,4	76
4" × 1 1/2"	DN100×DN40	114,3X48,3	76
4"×2"	DN100×DN50	114,3X60,3	76
4" × 2 1/2"	DN100×DN65	114,3X73,0	76
4" × 2 1/2"	DN100×DN65	114,3X76,1	76
4" × 3"	DN100×DN80	114,3X88,9	76
5" × 1"	DN125×DN25	139,7X33,7	89
5" × 1 1/4"	DN125×DN32	139,7X42,4	89
5"×1 1/2"	DN125×DN40	139,7X48,3	89
5"×2"	DN125×DN50	139,7X60,3	89
5" × 2 1/2"	DN125×DN65	139,7X76,1	89
5" × 3"	DN125×DN80	139,7X88,9	89
5"×4"	DN125×DN100	139,7X114,3	89
6" × 1"	DN150×DN25	159,0X33,7	89
6" × 1 1/4"	DN150×DN32	159,0X42,4	89
6" × 1 1/2"	DN150×DN40	159,0X48,3	89
6" × 2"	DN150×DN50	159,0X60,3	89
6" × 2 1/2"	DN150×DN65	159,0X76,1	89
6" × 3"	DN150×DN80	159,0X88,9	89
6" × 1"	DN150×DN25	165,1X33,7	102
6" × 1 1/4"	DN150×DN32	165,1X42,4	102
6" × 1 1/2"	DN150×DN40	165,1X48,3	102
6" × 2"	DN150×DN50	165,1X60,3	102
6" × 2 1/2"	DN150×DN65	165,1X76,1	102
6" × 3"	DN150×DN80	165,1X88,9	102
6" × 4"	DN150×DN100	165,1X114,3	102
6" × 5"	DN150×DN125	165,1X139,7	102
6" × 1"	DN150×DN25	168,3X33,7	102
6" × 1 1/4"	DN150×DN32	168,3X42,4	102
6" × 1 1/2"	DN150×DN40	168,3X48,3	102
6" × 2"	DN150×DN50	168,3X60,3	102
6" × 2 1/2"	DN150×DN65	168,3X73,0	102
6" × 2 1/2"	DN150×DN65	168,3X76,1	102
6" × 3"	DN150×DN80	168,3X88,9	102
8" × 1"	DN200×DN25	219,1X33,7	127
8" × 1 1/4"	DN200×DN32	219,1X42,4	127
8" × 1 1/2"	DN200×DN50	219,1X48,3	127
8" × 2"	DN200×DN50	219,1X60,3	127
8" × 2 1/2"	DN200×DN65	219,1X76,1	127
8" × 3"	DN200×DN80	219,1X88,9	127
8" × 4"	DN200×DN100	219,1X114,3	127
