Butt weld 45° elbow （long radius,R=1.5 D)

특징:

Certificate: ISO

American Standard: ASME B16.9

EN / BS Standard: EN 10253-1 / EN 10253-2 / EN 10253-3

Material -1: Carbon steel ASTM A234, WPB, P265GH, P235TR2

Material -2: Stainless steel SS ASTM A403, SS 304 , SS 316

Type: Long radius (LR) 3D, R=1.5D

W.pressure: Equal to same seamless pipe

End: Straight edges / bevelled for welding

Surface: Original / Sandblast / Black painting / hot dip galvanized

지금 채팅하기

제품 상세정보

Butt weld 45° elbow (Long radius) is used to change the direction of a pipeline by 45 degrees and connected by butt welding. The material can be carbon steel or stainless steel.

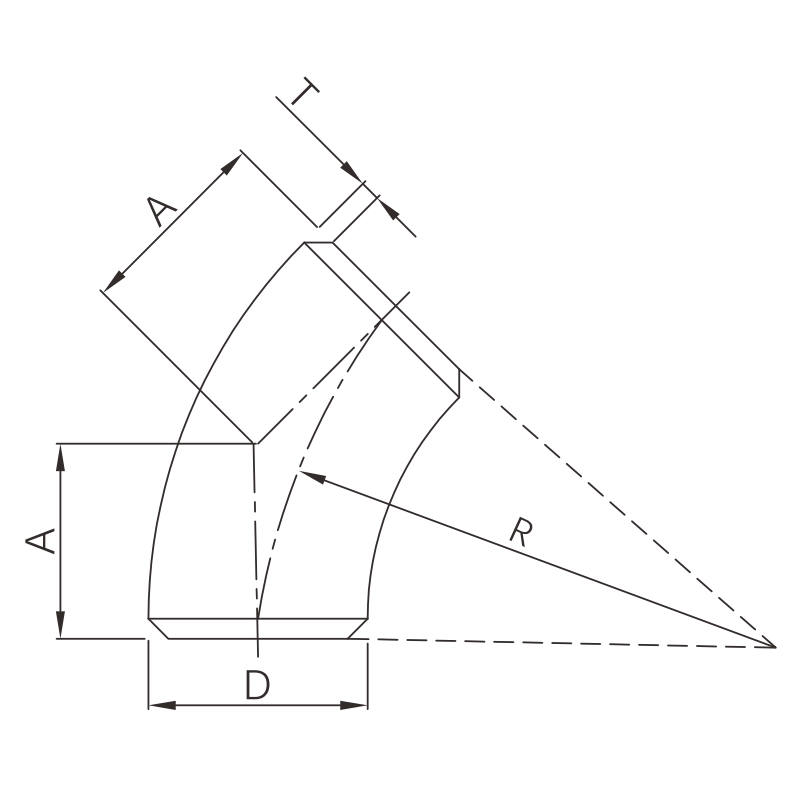

American Standard: ASME B16.9

SIZE			T (mm)			A (mm)
NPS	디엔에이	에서 (mm)	Sch10	Sch40	Sch80	A (mm)
1/2”	DN 15	21.3	2.11	2.77	3.73	16
3/4”	DN 20	26.7	2.11	2.87	3.91	19
1”	DN 25	33.4	2.77	3.38	4.55	22
1-1/4”	DN 32	42.2	2.77	3.56	4.85	25
1-1/2”	DN 40	48.3	2.77	3.68	5.08	29
2”	DN 50	60.3	2.77	3.91	5.54	35
2-1/2”	DN 65	73.0	3.05	5.16	7.01	44
3”	DN 80	88.9	3.05	5.49	7.62	51
4”	DN 100	114.3	3.05	6.02	8.56	64
5인치	DN 125	141.3	3.40	6.55	9.53	79
6인치	DN 150	168.3	3.40	7.11	10.97	95
8인치	DN 200	219.1	3.76	8.18	12.7	127
10인치	DN 250	273.0	4.19	9.27	15.09	159
12인치	DN 300	323.8	4.57	10.31	17.48	190
14인치	DN 350	355.6	6.35	11.13	19.05	222
16인치	DN 400	406.4	6.35	12.7	21.44	254
18인치	DN 450	457	6.35	14.27	23.83	286
20인치	DN500	508	6.35	15.09	26.19	318
24인치	DN 600	610	6.35	17.48	30.96	381

Note: Thickness can be Sch5, Sch10, Sch30, Sch40, Sch80, Sch120, Sch160, STD, XS, XXS, 5S, 10S, 40S, 80S, etc.

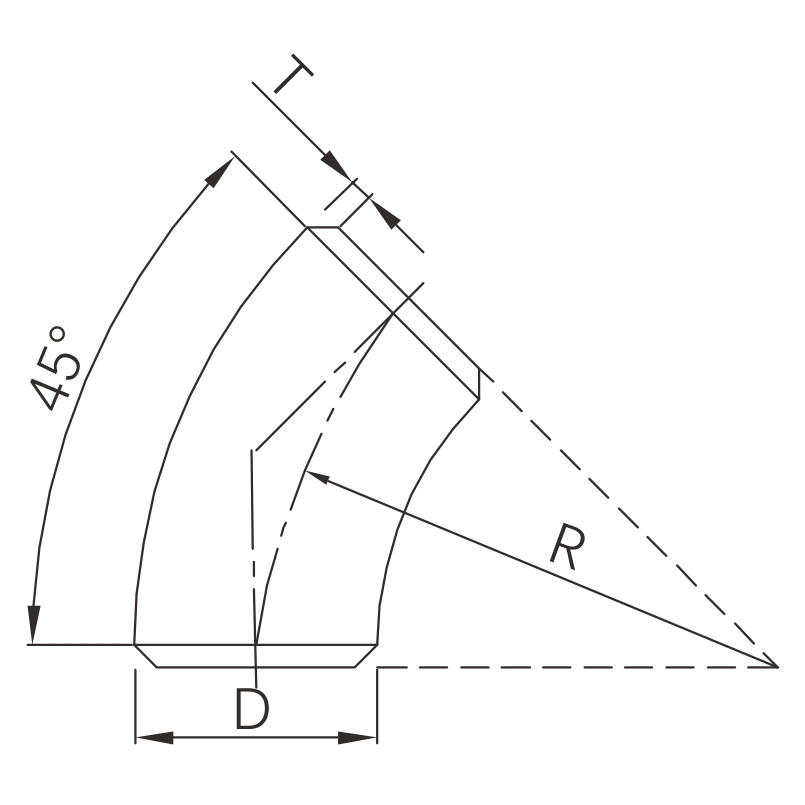

EN / BS Standard: EN 10253

SIZE			T (mm)	R (mm)
NPS	디엔에이	에서 (mm)	T (mm)	R (mm)
1/2”	DN 15	21.3	2.0 / 2.6 / 3.2 / 4.0 / 5.0 / 7.1	38
3/4”	DN 20	26.9	2.3 / 2.6 / 3.2 / 4.0 / 4.5 / 5.6 / 8.0	38
1”	DN 25	33.7	2.6 / 3.2 / 4.0 / 4.5 / 5.6 / 6.3 / 8.8	38
1-1/4”	DN 32	42.4	2.6 / 3.6 / 4.0 / 5.0 / 6.3 / 8.0 / 10.0	48
1-1/2”	DN 40	48.3	2.6 / 3.6 / 4.0 / 5.0 / 6.3 / 8.0 / 10.0	57
2”	DN 50	60.3	2.9 / 3.6 / 4.0 / 5.6 / 7.1 / 8.8 / 11.0	76
2-1/2”	DN 65	76.1	2.9 / 3.6 / 5.6 / 7.1 / 8.0 / 10.0 / 14.2	95
3”	DN 80	88.9	3.2 / 4.0 / 5.6 / 8.0 / 8.8 / 11.0 / 16.0	114
4”	DN 100	114.3	3.6 / 4.5 / 6.3 / 8.8 / 11.0 / 14.2 / 17.5	152
5인치	DN 125	139.7	4.0 / 5.0 / 6.3 / 10.0 / 12.5 / 16.0 / 20.0	190
6인치	DN 150	165.1/168.3	4.0 / 4.5 / 5.6 / 7.1 / 11.0 / 14.2 / 17.5 / 22.2	229
8인치	DN 200	219.1	4.5 / 6.3 / 7.1 / 8.0 / 12.5 / 16.0 / 17.5 / 22.2	305
10인치	DN 250	273.0	5.0 / 6.3 / 8.8 / 10.0 / 12.5 / 16.0 / 22.2 / 30.0	381
12인치	DN 300	323.9	5.6 / 7.1 / 8.8 / 10.0 / 12.5 / 17.5 / 25.0 / 32.0	457
14인치	DN 350	355.6	5.6 / 8.0 / 10.0 / 12.5 / 16.0 / 20.0 / 28.0 / 36.0	533
16인치	DN 400	406.4	6.3 / 8.8 / 10.0 / 12.5 / 17.5 / 22.2 / 30.0 / 40.0	610
18인치	DN 450	457	6.3 / 10.0 / 11.0 / 12.5 / 17.5 / 22.2 / 32.0 / 45.0	686
20인치	DN500	508	6.3 / 10.0 / 11.0 / 12.5 / 17.5 / 25.0 / 36.0 / 50.0	762
24인치	DN 600	610	6.3 / 10.0 / 12.5 / 17.5 / 25.0 / 30.0 / 45.0 / 60.0	914
