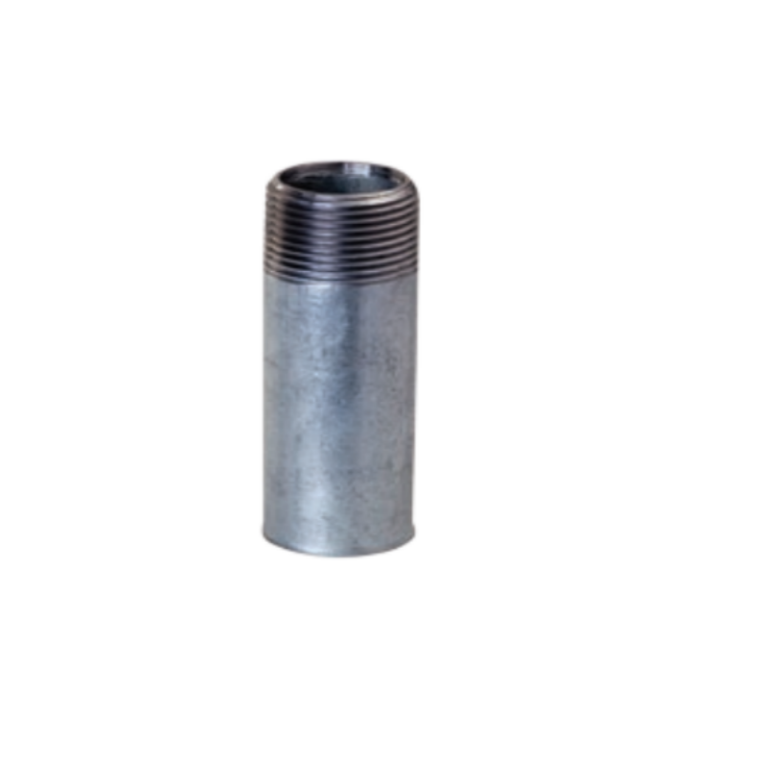

Barrel nipple - Fluid Tech

Vatnippel

Type: Welded / Seamless

Surface: Hot-dip galvanized / Electric-galvanized / Sandblast / Black painting / Original

Material ：ASTM A53/A106/A333 / BS EN 10241

Dimensions ：ASTM A733 / BS EN 10241

Threads ：ASME B1.20.1 / ISO7/1

Schedule ：40/80/160/XXS / Medium/Heavy

Chat nu

Productdetails

Vatnippel is a versatile and durable fitting designed to connect pipes, valves, and other components in plumbing, industrial, and mechanical systems. Manufactured from high-quality carbon steel, stainless steel, or alloy steel, this product ensures exceptional strength, corrosion resistance, and reliability in demanding environments.

ASTM Standard

Carbon Steel Pipe Nipple Sch.40/80/160/XXS,Welded/Seamless
Pipe Size	Pipe O.D.	Length Close	Pipe Nipple Lengths(In)
In	In	In	Pipe Nipple Lengths(In)
1/8	0.405	3/4	11/2	2	21/2	3	31/2	4	41/2	5	51/2	6	7	8	9	10	11	12
1/4	0.540	718	11/2	2	21/2	3	31/2	4	41/2	5	51/2	6	7	8	9	10	11	12
3/8	0.675	1	11/2	2	21/2	3	31/2	4	41/2	5	51/2	6	7	8	9	10	11	12
1/2	0.840	11/8	11/2	2	21/2	3	31/2	4	41/2	5	51/2	6	7	8	9	10	11	12
3/4	1.050	13/8	11/2	2	21/2	3	31/2	4	41/2	5	51/2	6	7	8	9	10	11	12
1	1.315	11/2	11/2	2	21/2	3	31/2	4	41/2	5	51/2	6	7	8	9	10	11	12
1-1/4	1.660	15/8	X	2	21/2	3	31/2	4	41/2	5	51/2	6	7	8	9	10	11	12
1-1/2	1.900	13/4	X	2	21/2	3	31/2	4	41/2	5	51/2	6	7	8	9	10	11	12
2	2.375	2	X	2	21/2	3	31/2	4	41/2	5	51/2	6	7	8	9	10	11	12
2-1/2	2.875	21/2	X	X	21/2	3	31/2	4	41/2	5	51/2	6	7	8	9	10	11	12
3	3.500	25/8	X		X	3	31/2	4	41/2	5	51/2	6	7	8	9	10	11	12
4	4.500	2718	X	X	X	3	31/2	4	41/2	5	51/2	6	7	8	9	10	11	12
5	5.563	3	X	X	X	3	31/2	4	41/2	5	51/2	6	7	8	9	10	4	12
6	6.625	31/8	X	X	X	X	31/2	4	41/2	5	51/2	6	7	8	9	10	11	12
8	8.625	31/2	X	X	X	X	31/2	4	41/2	5	51/2	6	7	8	9	10	11	12

BS/EN Standard

Carbon Steel Pipe Nipple Medium/Heavy ,Welded/Seamless
Buismaat	Pipe O.D.	Length Close	Pipe Nipple Lengths(mm)
mm	mm	mm	Pipe Nipple Lengths(mm)
6	10.3	19	30	40	50	60	80	100	120	150	180	200	250	300	350	400	450	500
8	13.7	27	30	40	50	60	80	100	41/2	150	180	200	250	300	350	400	450	500
10	17.1	28	30	40	50	60	80	100	41/2	150	180	200	250	300	350	400	450	500
15	21.3	37	X	40	50	60	80	100	41/2	150	180	200	250	300	350	400	450	500
20	26.7	39	X	40	50	60	80	100	41/2	150	180	200	250	300	350	400	450	500
25	33.4	46	X	X	50	60	80	100	41/2	150	180	200	250	300	350	400	450	500
32	42.2	51	X	X	50	60	80	100	41/2	150	180	200	250	300	350	400	450	500
40	48.3	51	X	X	50	60	80	100	41/2	150	180	200	250	300	350	400	450	500
50	60.3	60	X	X	X	60	80	100	41/2	150	180	200	250	300	350	400	450	500
65	76.1	69	X	X	X	X	80	100	41/2	150	180	200	250	300	350	400	450	500
80	88.9	75	X	X	X	X	80	100	41/2	150	180	200	250	300	350	400	450	500
100	114.3	87	X	X	X	X	X	100	41/2	150	180	200	250	300	350	400	450	500
125	141.3	96	X	X	X	X	X	X	120	150	180	200	250	300	350	400	450	500
150	168.3	96	X	X	X	X	X	X	120	150	180	200	250	300	350	400	450	500
