Forged round head plug

Functies:

Certificate: ISO

American Standard: ASME B16.11

Material: Carbon steel ASTM A 105 / Stainless steel

Type: Forged fitting

Thread: NPT / BSPT

W.pressure: Class 3000

Surface: Original / hot dip galvanized

Chat nu

Productdetails

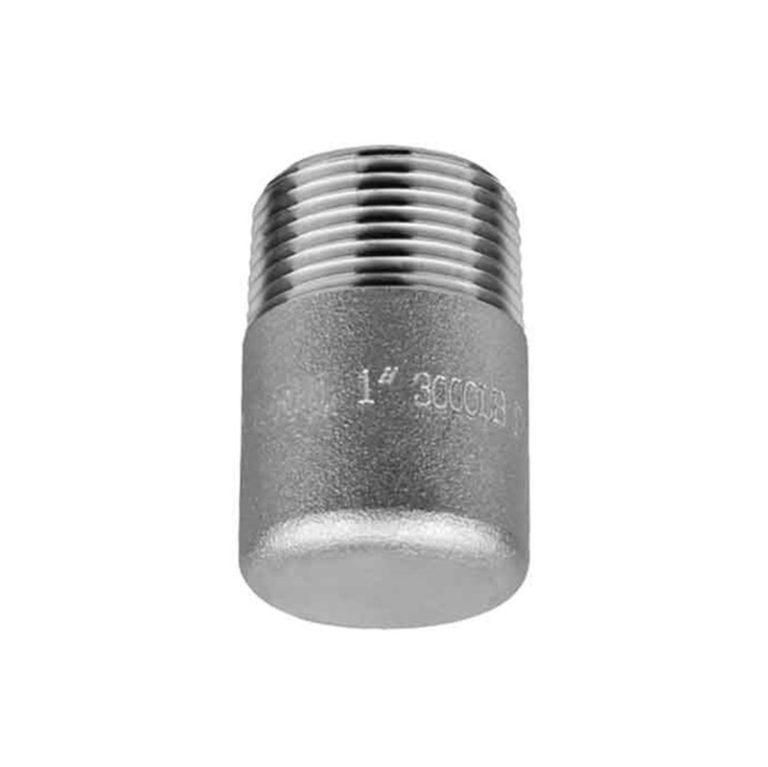

Forged round head plug is used to close the end of a piping system by male threaded in order to block the pipeline and form liquid or gas tight seal. It is with round head.

MAAT		Length	Head Dia.	Length
NPS	DN	A min	E min	D min
1/8”	6	10	10	35
1/4”	8	11	14	41
3/8”	10	13	18	41
1/2”	15	14	21	44
3/4”	20	16	27	44
1”	25	19	33	51
1-1/4”	32	21	43	51
1-1/2”	40	21	48	51
2”	50	22	60	64
2-1/2”	65	27	73	70
3”	80	28	89	70
4”	100	32	114	76
