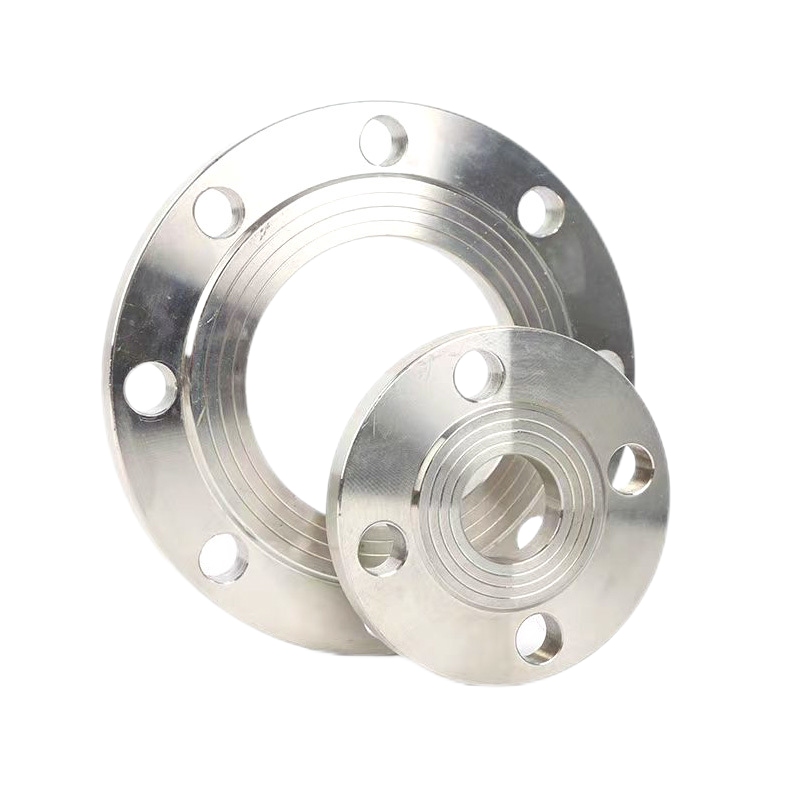

Plate flange

Functies:

Certificate: ISO

Standard: EN 1092-1 Type 01

Material: Carbon steel / Stainless steel

Flange Face: FF / RF

W.pressure: PN 10 / PN 16 / PN 25

Surface: Original / Black painting / hot dip galvanized

Chat nu

Productdetails

Plate Flange can be named Flat flange or plain flange. It is almost flat circular disc that is connected to the pipe in the same way as a slip-on flange, by two fillet welds.

MAAT			Rating class	Flange OD D (mm)	Bolt circle dia. Ik (mm)	Bolting (No. x hole)	Ref. weight (kg)
NPS	DN	VAN (mm)
1/2”	DN 15	21.3	PN16	95	65	4 x 14	0.67
3/4”	DN 20	26.9	PN16	105	75	4 x 14	0.94
1”	DN 25	33.7	PN16	115	85	4 x 14	1.11
1-1/4”	DN 32	42.4	PN16	140	100	4 x 18	1.82
1-1/2”	DN 40	48.3	PN16	150	110	4 x 18	2.08
2”	DN 50	60.3	PN16	165	125	4 x 18	2.73
2-1/2”	DN 65	73.0 / 76.1	PN16	185	145	4 x 18	3.16
3”	DN 80	88.9	PN16	200	160	8 x 18	3.6
4”	DN 100	114.3	PN16	220	180	8 x 18	4.39
5”	DN 125	139.7	PN16	250	210	8 x 18	5.41
6”	DN 150	165.1 / 168.3	PN16	285	240	8 x 22	7.14
