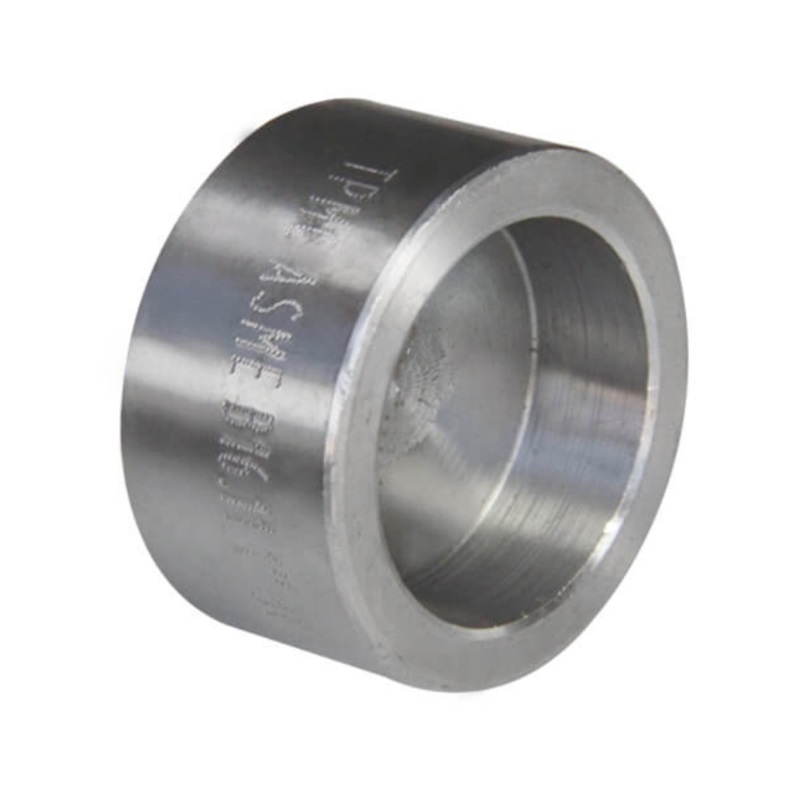

Socket weld cap

Functies:

Certificate: ISO

American Standard: ASME B16.11

Material: Carbon steel ASTM A 105 / Stainless steel

Type: Forged fitting

W.pressure: Class 3000 / 6000 / 9000

Surface: Original / hot dip galvanized

Chat nu

Productdetails

SW cap is used to close the end of a piping system by socket welding connection. The pipe ends are inserted into the notches in the SW caps and welded into place.

MAAT		Socket Bore Dia. B	Socket Wall C min			Depth of socket J min	Laying Length F
NPS	DN	Socket Bore Dia. B	3000 LB	6000 LB	9000 LB	Depth of socket J min	Laying Length F
1/8”	6	10.9	3.18	3.43	–	9.5	16.0
1/4”	8	14.3	3.30	4.01	–	9.5	16.0
3/8”	10	17.7	3.50	4.37	–	9.5	17.5
1/2”	15	21.9	4.09	5.18	8.18	9.5	22.5
3/4”	20	27.3	4.27	6.04	8.56	12.5	24.0
1”	25	34.0	4.98	6.93	9.96	12.5	28.5
1-1/4”	32	42.8	5.28	6.93	10.62	12.5	30.0
1-1/2”	40	48.9	5.54	7.80	11.12	12.5	32.0
2”	50	61.2	6.04	9.50	12.12	16.0	41.0
2-1/2”	65	73.9	7.62	–	–	16.0	43.0
3”	80	89.9	8.30	–	–	16.0	44.5
4”	100	115.5	9.35	–	–	16.0	48.5
