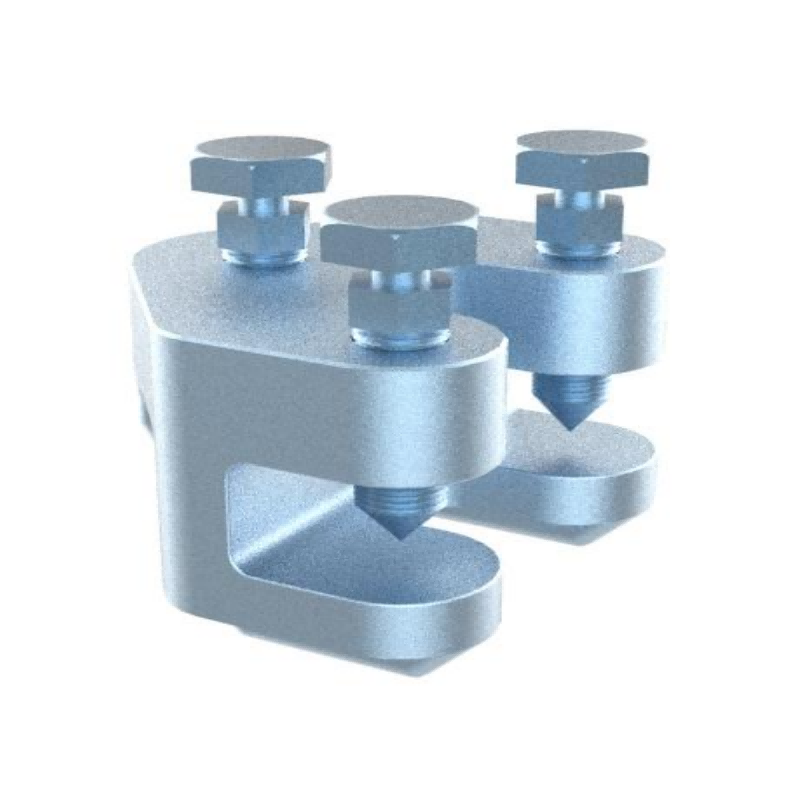

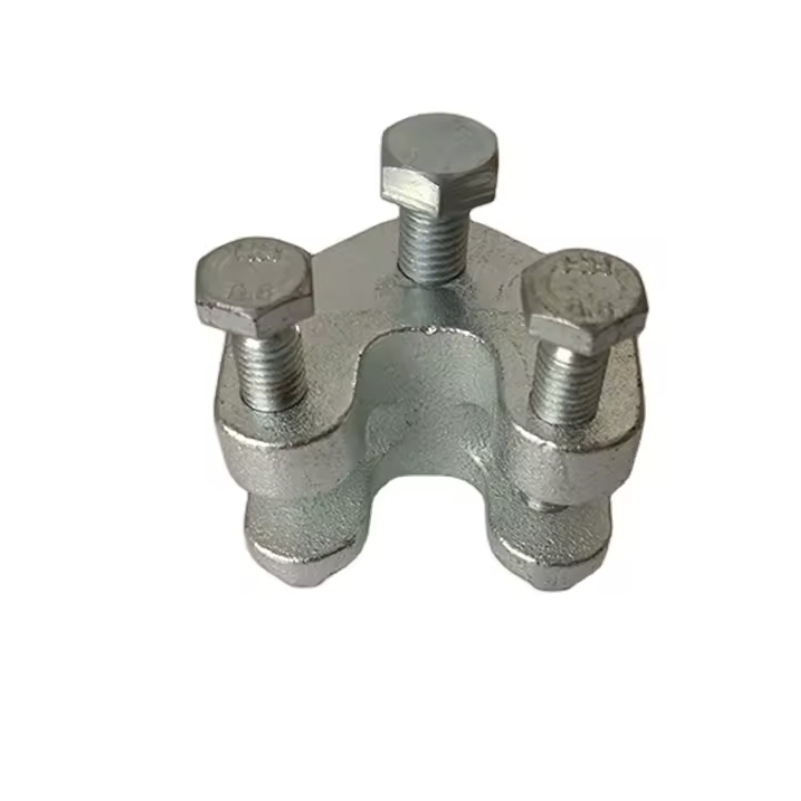

Beam adapter – utt11

Features:

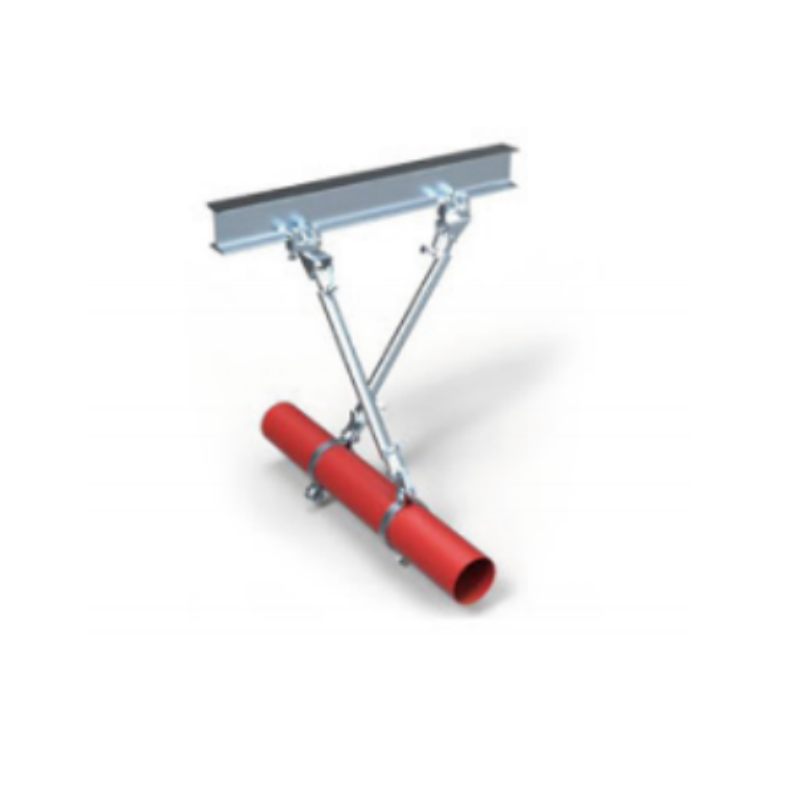

Function: Designed for bracing pipe against sway and seismic disturbance.The pipe attachment component of a sway brace system used in conjunction with a UTT Manufacturing structural attachment fitting.and joined together with a bracing pipe element forms a complete sway brace assembly.Sway brace assemblies are intended to be installed in accordance withNFPA13 and the manufacturer’s installation instructions.

Type:Sprinkler Pipe Sch 10,Sch 40,GB/T3091,IS G3454

Size:One size fits braced pipe up to 8”,with 1/2″bolt hole for structure.

Material:Ductile iron QT450

Finish:Electro-galvanized

Chat Now

Product details

Beam Adapter – utt11 is an efficient and flexible structural connection component widely used in construction, engineering, industrial manufacturing and equipment installation.

UL Maximum Design Load
Brace Member	lbs.	kN	Wt.Each
			lb.	kg
1“ SCH40 pipe	1890	(4.84)	1.94	(0.88)

FM Maximum Design Load
Brace Member	Horizontal load ratings installation angle 30°-44		Horizontal load ratings installation angle 45°-59°		Wt.Each

	lbs.	kN	lbs.	kN	Ib.	kg
1“ SCH40 pipe	970	(4.31)	1660	(7.38)	1.94	(0.88)
