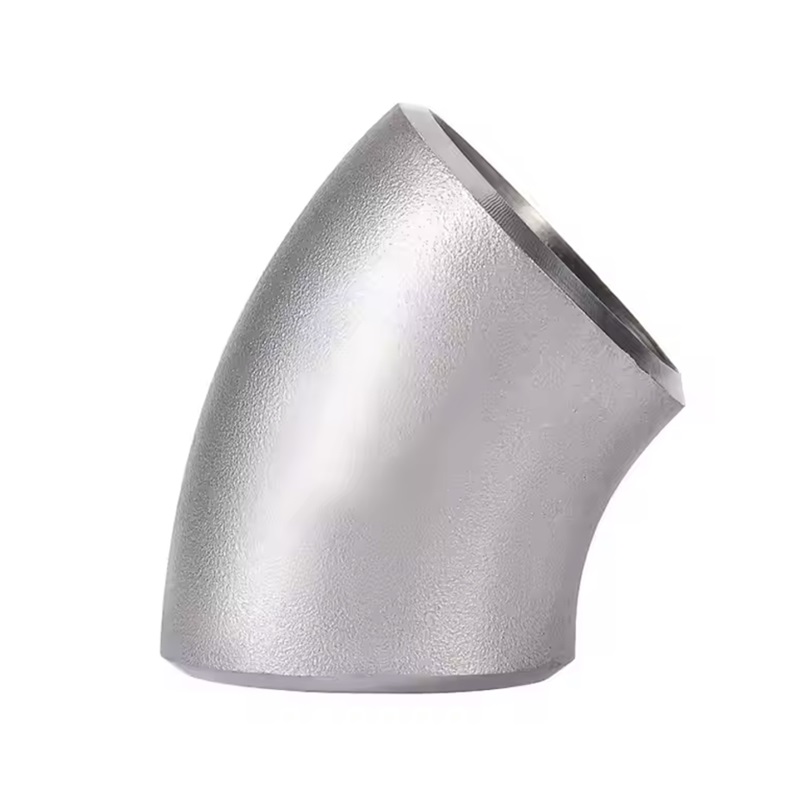

Butt weld 45° elbow （long radius,R=1.5 D)

Features:

Certificate: ISO

American Standard: ASME B16.9

EN / BS Standard: EN 10253-1 / EN 10253-2 / EN 10253-3

Material -1: Carbon steel ASTM A234, WPB, P265GH, P235TR2

Material -2: Stainless steel SS ASTM A403, SS 304 , SS 316

Type: Long radius (LR) 3D, R=1.5D

W.pressure: Equal to same seamless pipe

End: Straight edges / bevelled for welding

Surface: Original / Sandblast / Black painting / hot dip galvanized

Chat Now

Product details

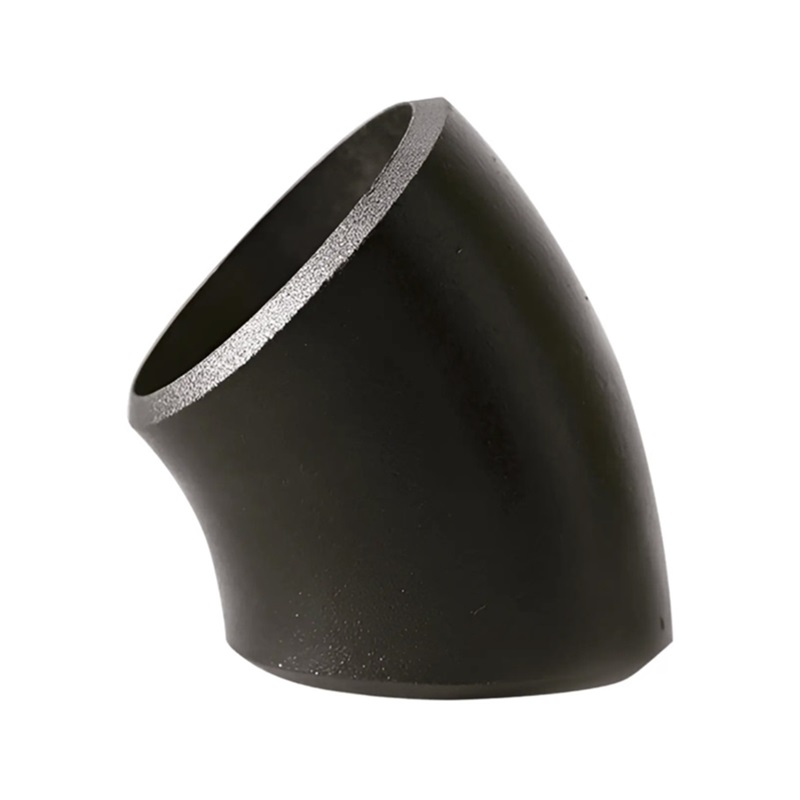

Butt weld 45° elbow (Long radius) is used to change the direction of a pipeline by 45 degrees and connected by butt welding. The material can be carbon steel or stainless steel.

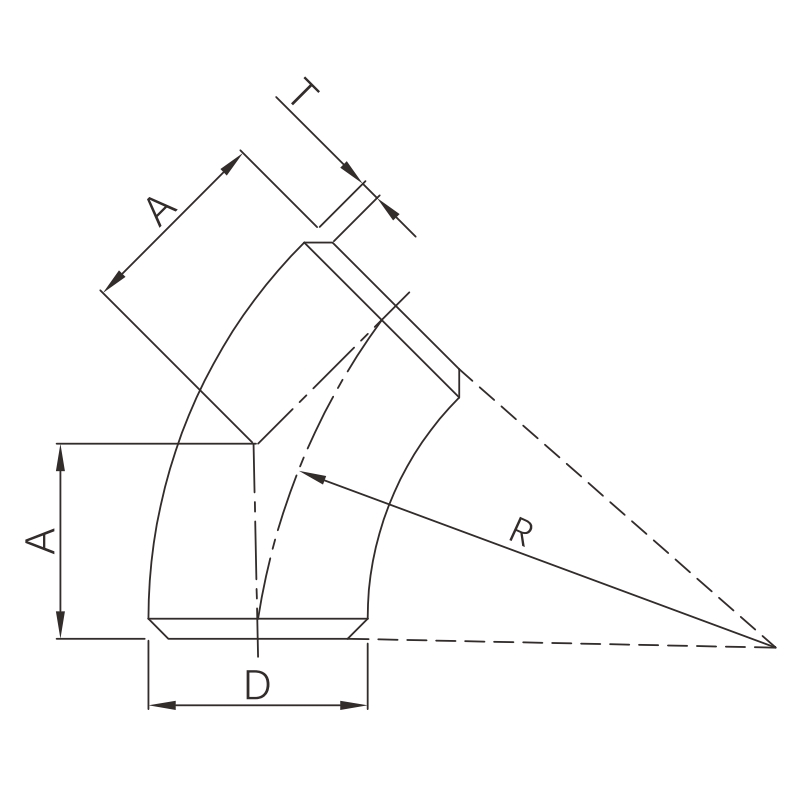

American Standard: ASME B16.9

SIZE			T (mm)			A (mm)
NPS	DN	OD (mm)	Sch10	Sch40	Sch80	A (mm)
1/2”	DN 15	21.3	2.11	2.77	3.73	16
3/4”	DN 20	26.7	2.11	2.87	3.91	19
1”	DN 25	33.4	2.77	3.38	4.55	22
1-1/4”	DN 32	42.2	2.77	3.56	4.85	25
1-1/2”	DN 40	48.3	2.77	3.68	5.08	29
2”	DN 50	60.3	2.77	3.91	5.54	35
2-1/2”	DN 65	73.0	3.05	5.16	7.01	44
3”	DN 80	88.9	3.05	5.49	7.62	51
4”	DN 100	114.3	3.05	6.02	8.56	64
5”	DN 125	141.3	3.40	6.55	9.53	79
6”	DN 150	168.3	3.40	7.11	10.97	95
8”	DN 200	219.1	3.76	8.18	12.7	127
10”	DN 250	273.0	4.19	9.27	15.09	159
12”	DN 300	323.8	4.57	10.31	17.48	190
14”	DN 350	355.6	6.35	11.13	19.05	222
16”	DN 400	406.4	6.35	12.7	21.44	254
18”	DN 450	457	6.35	14.27	23.83	286
20”	DN500	508	6.35	15.09	26.19	318
24”	DN 600	610	6.35	17.48	30.96	381

Note: Thickness can be Sch5, Sch10, Sch30, Sch40, Sch80, Sch120, Sch160, STD, XS, XXS, 5S, 10S, 40S, 80S, etc.

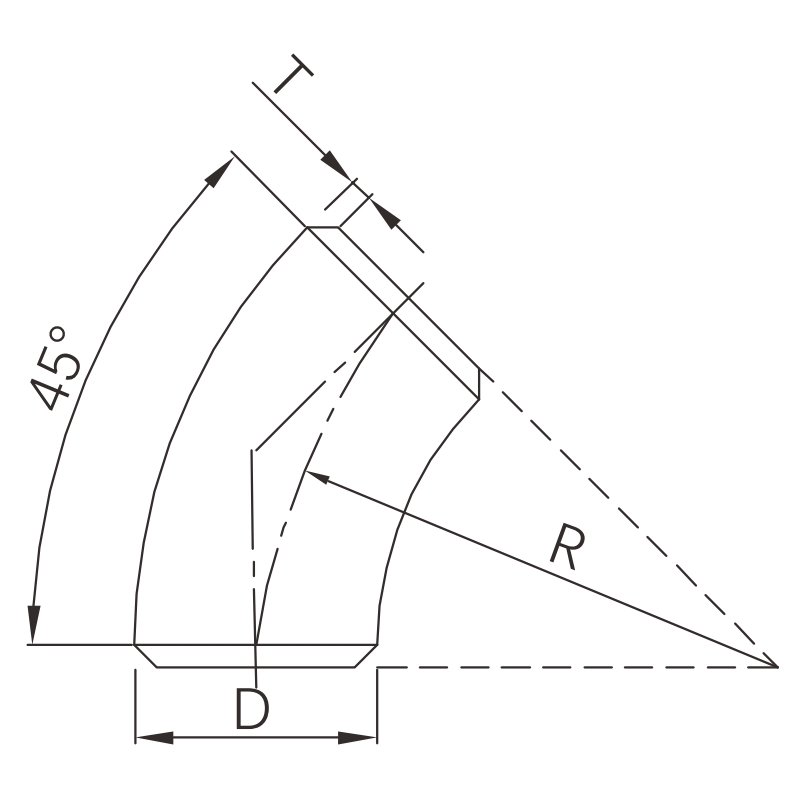

EN / BS Standard: EN 10253

SIZE			T (mm)	R (mm)
NPS	DN	OD (mm)	T (mm)	R (mm)
1/2”	DN 15	21.3	2.0 / 2.6 / 3.2 / 4.0 / 5.0 / 7.1	38
3/4”	DN 20	26.9	2.3 / 2.6 / 3.2 / 4.0 / 4.5 / 5.6 / 8.0	38
1”	DN 25	33.7	2.6 / 3.2 / 4.0 / 4.5 / 5.6 / 6.3 / 8.8	38
1-1/4”	DN 32	42.4	2.6 / 3.6 / 4.0 / 5.0 / 6.3 / 8.0 / 10.0	48
1-1/2”	DN 40	48.3	2.6 / 3.6 / 4.0 / 5.0 / 6.3 / 8.0 / 10.0	57
2”	DN 50	60.3	2.9 / 3.6 / 4.0 / 5.6 / 7.1 / 8.8 / 11.0	76
2-1/2”	DN 65	76.1	2.9 / 3.6 / 5.6 / 7.1 / 8.0 / 10.0 / 14.2	95
3”	DN 80	88.9	3.2 / 4.0 / 5.6 / 8.0 / 8.8 / 11.0 / 16.0	114
4”	DN 100	114.3	3.6 / 4.5 / 6.3 / 8.8 / 11.0 / 14.2 / 17.5	152
5”	DN 125	139.7	4.0 / 5.0 / 6.3 / 10.0 / 12.5 / 16.0 / 20.0	190
6”	DN 150	165.1/168.3	4.0 / 4.5 / 5.6 / 7.1 / 11.0 / 14.2 / 17.5 / 22.2	229
8”	DN 200	219.1	4.5 / 6.3 / 7.1 / 8.0 / 12.5 / 16.0 / 17.5 / 22.2	305
10”	DN 250	273.0	5.0 / 6.3 / 8.8 / 10.0 / 12.5 / 16.0 / 22.2 / 30.0	381
12”	DN 300	323.9	5.6 / 7.1 / 8.8 / 10.0 / 12.5 / 17.5 / 25.0 / 32.0	457
14”	DN 350	355.6	5.6 / 8.0 / 10.0 / 12.5 / 16.0 / 20.0 / 28.0 / 36.0	533
16”	DN 400	406.4	6.3 / 8.8 / 10.0 / 12.5 / 17.5 / 22.2 / 30.0 / 40.0	610
18”	DN 450	457	6.3 / 10.0 / 11.0 / 12.5 / 17.5 / 22.2 / 32.0 / 45.0	686
20”	DN500	508	6.3 / 10.0 / 11.0 / 12.5 / 17.5 / 25.0 / 36.0 / 50.0	762
24”	DN 600	610	6.3 / 10.0 / 12.5 / 17.5 / 25.0 / 30.0 / 45.0 / 60.0	914
