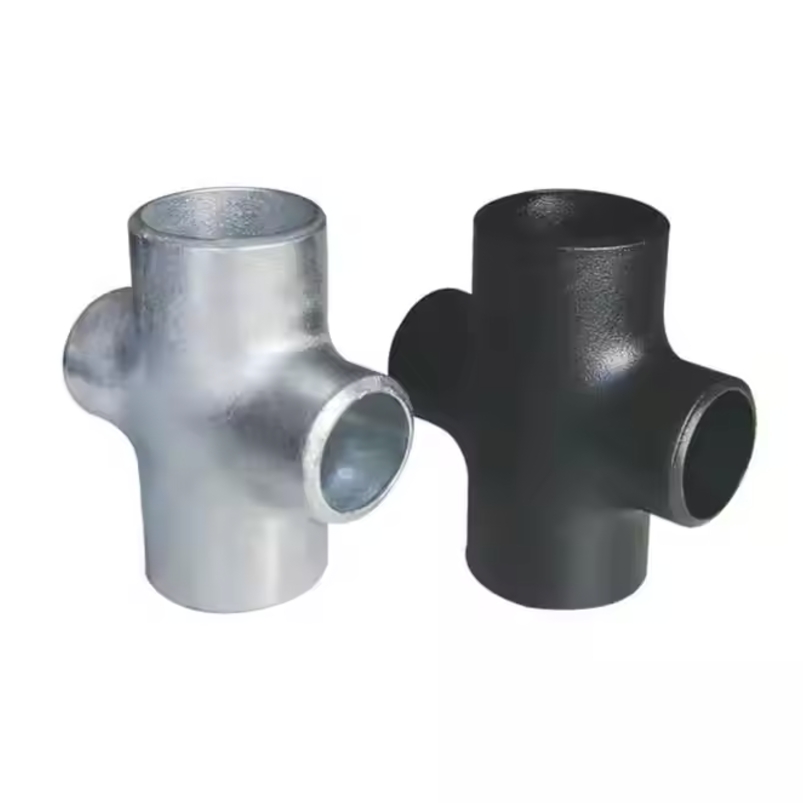

Butt weld reducing cross

Features:

Certificate: ISO

American Standard: ASME B16.9

Material -1: Carbon steel ASTM A234, WPB

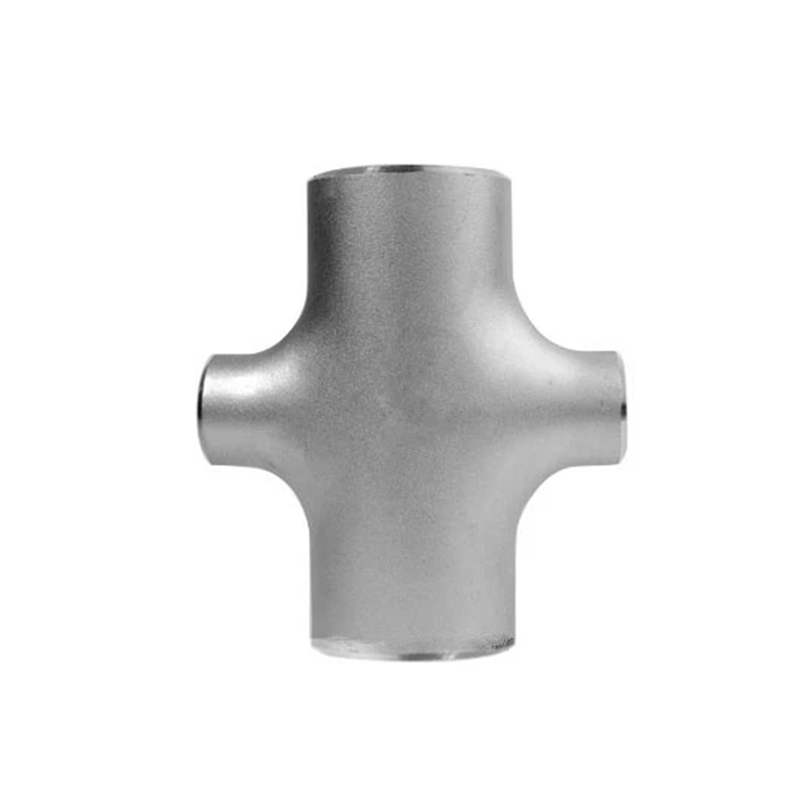

Material -2: Stainless steel SS ASTM A403, SS 304 , SS 316

Type: Reducing Cross

W.pressure: Equal to same seamless pipe

End: Straight edges / bevelled for welding

Surface: Original / Sandblast / Black painting / hot dip galvanized

Chat Now

Product details

Butt weld reducing cross is used to connect and branch four pipes in piping systems, where one or more branches are smaller in diameter than the main pipe. All ends are beveled to facilitate butt welding, providing a strong and permanent connection.

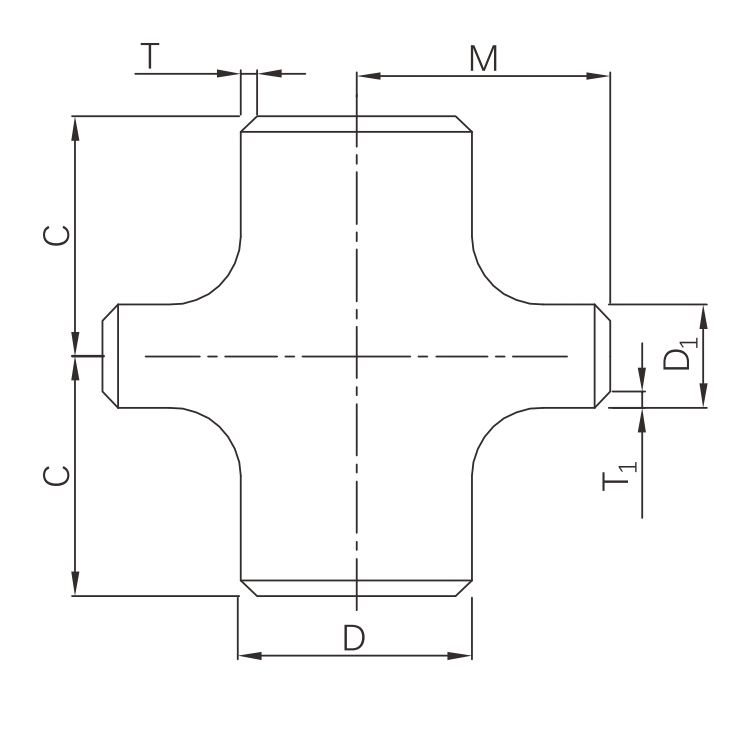

SIZE			T (mm)			C (mm)	M (mm)
NPS	DN	OD (mm)	Sch10	Sch40	Sch80	C (mm)	M (mm)
3/4″ x 1/2″	20 x 15	26.7 x 21.3	2.11 x 2.11	2.87 x 2.77	3.91 x 3.73	29	29
1″ x 3/4″	25 x 20	33.4 x 26.7	2.77 x 2.11	3.38 x 2.87	4.55 x 3.91	38	38
1-1/4″ x 1″	32 x 25	42.2 x 33.4	2.77 x 2.77	3.56 x 3.38	4.85 x 4.55	48	48
1-1/2″ x 1-1/4″	40 x 32	48.3 x 42.2	2.77 x 2.77	3.68 x 3.56	5.08 x 4.85	57	57
2″ x 1-1/2″	50 x 40	60.3 x 48.3	2.77 x 2.77	3.91 x 3.68	5.54 x 5.08	64	60
2-1/2″ x 2″	65 x 50	73.0 x 60.3	3.05 x 2.77	5.16 x 3.91	7.01 x 5.54	76	70
3″ x 2-1/2″	80 x 65	88.9 x 73.0	3.05 x 3.05	5.49 x 5.16	7.62 x 7.01	86	83
4″ x 3″	100 x 80	114.3 x 88.9	3.05 x 3.05	6.02 x 5.49	8.56 x 7.62	105	98
5″ x 4″	125 x 100	141.3 x 114.3	3.40 x 3.05	6.55 x 6.02	9.53 x 8.56	124	117
6″ x 4″	150 x 100	168.3 x 114.3	3.40 x 3.05	7.11 x 6.02	10.97 x 8.56	143	130
8″ x 6″	200 x 150	219.1 x 168.3	3.76 x 3.40	8.18 x 7.11	12.70 x 10.97	178	168
10″ x 8″	250 x 200	273.0 x 219.1	4.19 x 3.76	9.27 x 8.18	15.09 x 12.70	216	203
12″ x 10″	300 x 250	323.8 x 273.0	4.57 x 4.19	10.31 x 9.27	17.48 x 15.09	254	241
14″ x 12″	350 x 300	355.6 x 323.8	6.35 x 4.57	11.13 x 10.31	19.05 x 17.48	279	270
16″ x 14″	400 x 350	406.4 x 355.6	6.35 x 6.35	12.70 x 11.13	21.44 x 19.05	305	305
18″ x 16″	450 x 400	457 x 406.4	6.35 x 6.35	14.27 x 12.70	23.83 x 21.44	343	330
20″ x 18″	500 x 450	508 x 457	6.35 x 6.35	15.09 x 14.27	26.19 x 23.83	381	368
24″ x 20″	600 x 500	610 x 508	6.35 x 6.35	17.48 x 9.27	17.48 x 15.09	432	432
