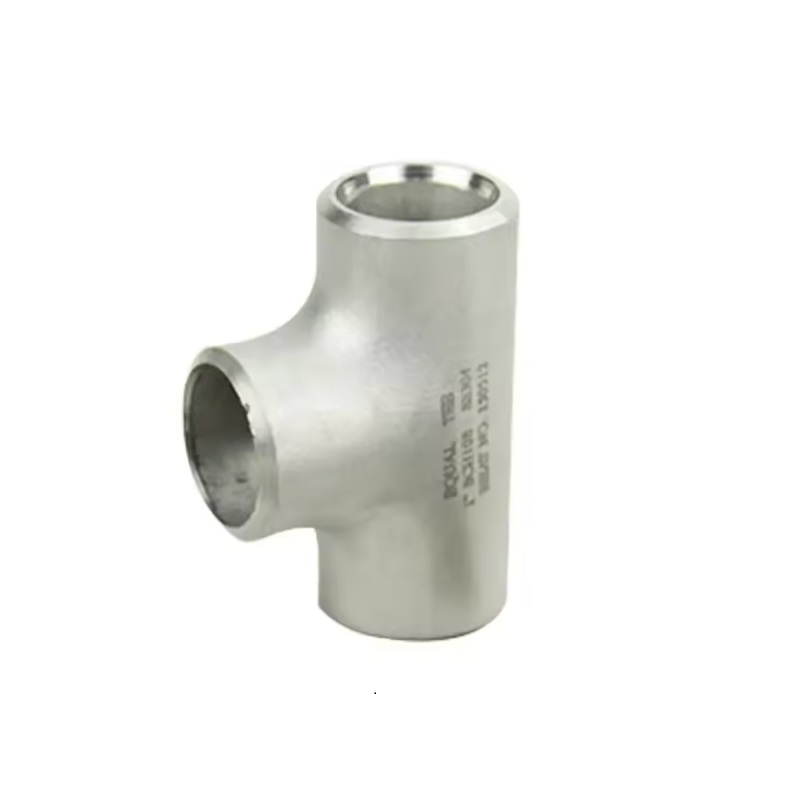

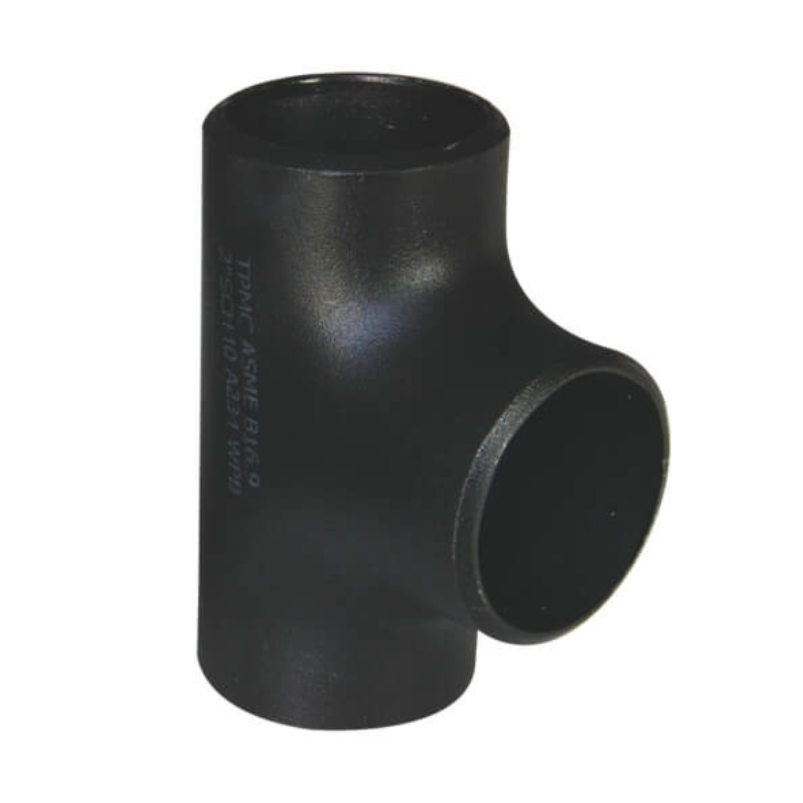

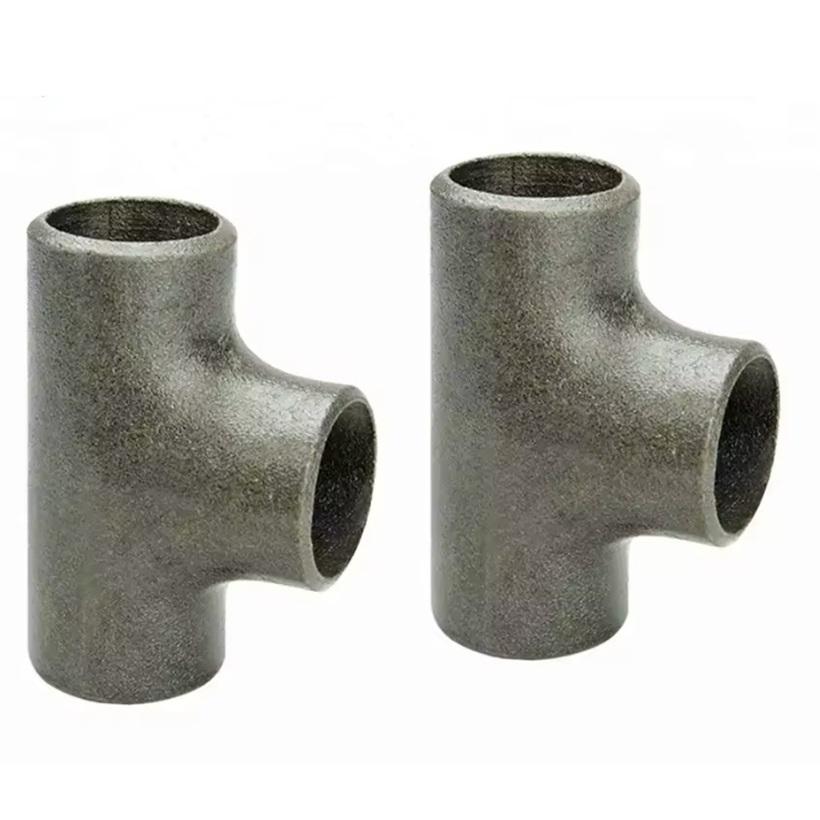

Features:
Certificate: ISO
American Standard: ASME B16.9
EN / BS Standard: EN 10253-1 / EN 10253-2 / EN 10253-3
Material -1: Carbon steel ASTM A234, WPB, P265GH, P235TR2
Material -2: Stainless steel SS ASTM A403, SS 304 , SS 316
Type: Equal Tee
W.pressure: Equal to same seamless pipe
End: Straight edges / bevelled for welding
Surface: Original / Sandblast / Black painting / hot dip galvanized
Butt weld tee is used to branch a flow of fluid in the piping systems. It connects three pipes by butt welding, usually in a “T” configuration.

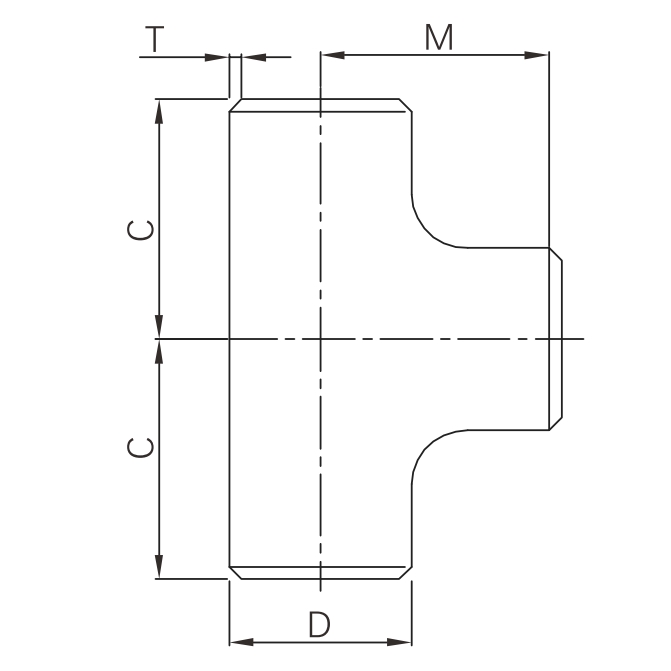

American Standard: ASME B16.9
| SIZE | T (mm) | C
(mm) |
M
(mm) |
||||
| NPS | DN | OD (mm) | Sch10 | Sch40 | Sch80 | ||
| 1/2” | DN 15 | 21.3 | 2.11 | 2.77 | 3.73 | 25 | 25 |
| 3/4” | DN 20 | 26.7 | 2.11 | 2.87 | 3.91 | 29 | 29 |
| 1” | DN 25 | 33.4 | 2.77 | 3.38 | 4.55 | 38 | 38 |
| 1-1/4” | DN 32 | 42.2 | 2.77 | 3.56 | 4.85 | 48 | 48 |
| 1-1/2” | DN 40 | 48.3 | 2.77 | 3.68 | 5.08 | 57 | 57 |
| 2” | DN 50 | 60.3 | 2.77 | 3.91 | 5.54 | 64 | 64 |
| 2-1/2” | DN 65 | 73.0 | 3.05 | 5.16 | 7.01 | 76 | 76 |
| 3” | DN 80 | 88.9 | 3.05 | 5.49 | 7.62 | 86 | 86 |
| 4” | DN 100 | 114.3 | 3.05 | 6.02 | 8.56 | 105 | 105 |
| 5” | DN 125 | 141.3 | 3.40 | 6.55 | 9.53 | 124 | 124 |
| 6” | DN 150 | 168.3 | 3.40 | 7.11 | 10.97 | 143 | 143 |
| 8” | DN 200 | 219.1 | 3.76 | 8.18 | 12.7 | 178 | 178 |
| 10” | DN 250 | 273.0 | 4.19 | 9.27 | 15.09 | 216 | 216 |
| 12” | DN 300 | 323.8 | 4.57 | 10.31 | 17.48 | 254 | 254 |
| 14” | DN 350 | 355.6 | 6.35 | 11.13 | 19.05 | 279 | 279 |
| 16” | DN 400 | 406.4 | 6.35 | 12.7 | 21.44 | 305 | 305 |
| 18” | DN 450 | 457 | 6.35 | 14.27 | 23.83 | 343 | 343 |
| 20” | DN500 | 508 | 6.35 | 15.09 | 26.19 | 381 | 381 |
| 24” | DN 600 | 610 | 6.35 | 17.48 | 30.96 | 432 | 432 |
Note: Thickness can be Sch5, Sch10, Sch30, Sch40, Sch80, Sch120, Sch160, STD, XS, XXS, 5S, 10S, 40S, 80S, etc.

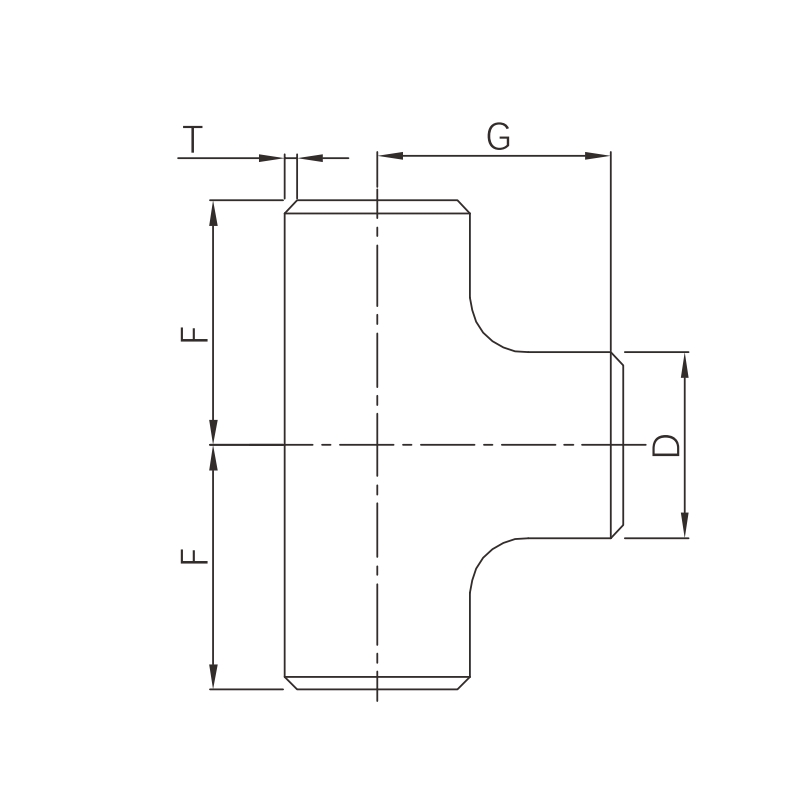

EN / BS Standard: EN 10253
| SIZE | T (mm) | F (mm) | G
(mm) |
||
| NPS | DN | OD (mm) | |||
| 1/2” | DN 15 | 21.3 | 2.0 / 2.6 / 3.2 / 4.0 / 5.0 / 7.1 | 25 | 25 |
| 3/4” | DN 20 | 26.9 | 2.3 / 2.6 / 3.2 / 4.0 / 4.5 / 5.6 / 8.0 | 29 | 29 |
| 1” | DN 25 | 33.7 | 2.6 / 3.2 / 4.0 / 4.5 / 5.6 / 6.3 / 8.8 | 38 | 38 |
| 1-1/4” | DN 32 | 42.4 | 2.6 / 3.6 / 4.0 / 5.0 / 6.3 / 8.0 / 10.0 | 48 | 48 |
| 1-1/2” | DN 40 | 48.3 | 2.6 / 3.6 / 4.0 / 5.0 / 6.3 / 8.0 / 10.0 | 57 | 57 |
| 2” | DN 50 | 60.3 | 2.9 / 3.6 / 4.0 / 5.6 / 7.1 / 8.8 / 11.0 | 64 | 64 |
| 2-1/2” | DN 65 | 76.1 | 2.9 / 3.6 / 5.6 / 7.1 / 8.0 / 10.0 / 14.2 | 76 | 76 |
| 3” | DN 80 | 88.9 | 3.2 / 4.0 / 5.6 / 8.0 / 8.8 / 11.0 / 16.0 | 86 | 86 |
| 4” | DN 100 | 114.3 | 3.6 / 4.5 / 6.3 / 8.8 / 11.0 / 14.2 / 17.5 | 105 | 105 |
| 5” | DN 125 | 139.7 | 4.0 / 5.0 / 6.3 / 10.0 / 12.5 / 16.0 / 20.0 | 124 | 124 |
| 6” | DN 150 | 165.1/168.3 | 4.0 / 4.5 / 5.6 / 7.1 / 11.0 / 14.2 / 17.5 / 22.2 | 143 | 143 |
| 8” | DN 200 | 219.1 | 4.5 / 6.3 / 7.1 / 8.0 / 12.5 / 16.0 / 17.5 / 22.2 | 178 | 178 |
| 10” | DN 250 | 273.0 | 5.0 / 6.3 / 8.8 / 10.0 / 12.5 / 16.0 / 22.2 / 30.0 | 216 | 216 |
| 12” | DN 300 | 323.9 | 5.6 / 7.1 / 8.8 / 10.0 / 12.5 / 17.5 / 25.0 / 32.0 | 254 | 254 |
| 14” | DN 350 | 355.6 | 5.6 / 8.0 / 10.0 / 12.5 / 16.0 / 20.0 / 28.0 / 36.0 | 279 | 279 |
| 16” | DN 400 | 406.4 | 6.3 / 8.8 / 10.0 / 12.5 / 17.5 / 22.2 / 30.0 / 40.0 | 305 | 305 |
| 18” | DN 450 | 457 | 6.3 / 10.0 / 11.0 / 12.5 / 17.5 / 22.2 / 32.0 / 45.0 | 343 | 343 |
| 20” | DN500 | 508 | 6.3 / 10.0 / 11.0 / 12.5 / 17.5 / 25.0 / 36.0 / 50.0 | 381 | 381 |
| 24” | DN 600 | 610 | 6.3 / 10.0 / 12.5 / 17.5 / 25.0 / 30.0 / 45.0 / 60.0 | 432 | 432 |
