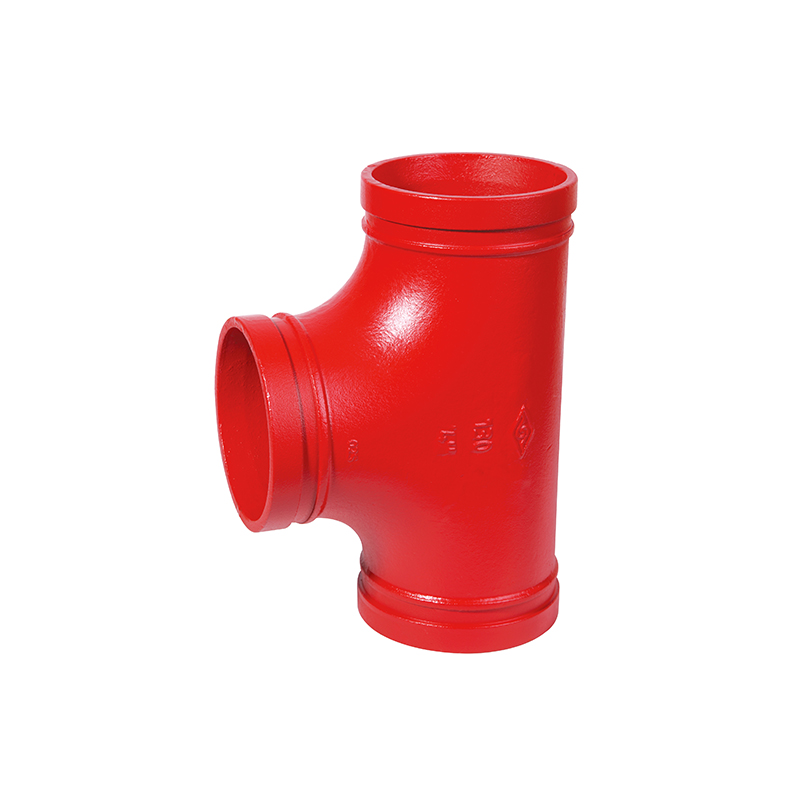

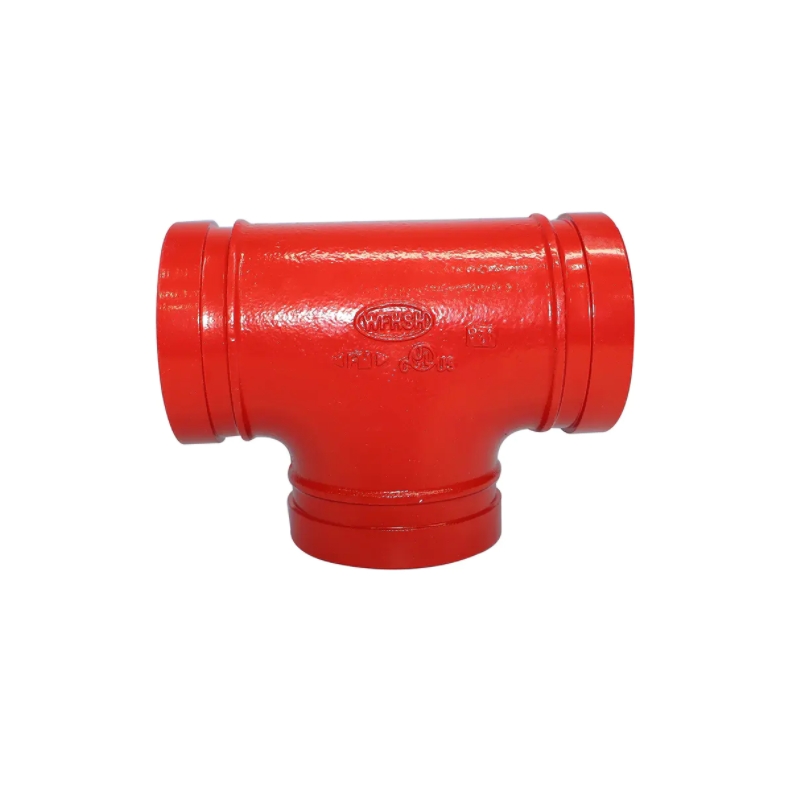

Grooved equal tee

Features:

Certificate: FM Approved / UL Listed / LPCB

Size: 1” – 24” (DN 25 – DN 600)

Pressure: 300PSI/500PSI

Material: ASTM A536, GRADE 65-45-12, QT450-10

Threaded: ASME B1.20.1, ISO 7-1, GB 7306

Groove: AWWA C606, ISO 6182-12

Surface: P: Painted E: Electroplated B: Black S: Epoxy G: Hot-dip Galvanized

Chat Now

Product details

Grooved equal tee is a pipe fitting that creates a T-shaped connection in a piping system, with all three outlets being the same diameter. It is used to split or combine flow in various directions while utilizing a grooved design for quick installation.

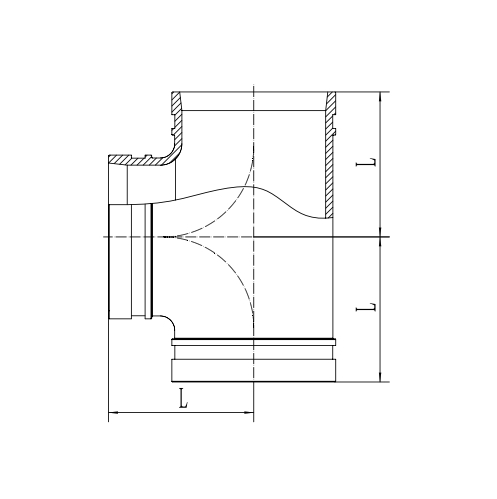

SIZE		OD SIZE	L (MM)
1″	DN25	33.7	57
1 1/4”	DN32	42.4	60
1 1/2”	DN40	48.3	60
2”	DN50	60.3	70
2 1/2”	DN65	73.0	76
2 1/2”	DN65	76.1	76
3”	DN80	88.9	86
4”	DN100	108.0	102
4”	DN100	114.3	102
5”	DN125	133.0	124
5”	DN125	139.7	124
5”	DN125	141.3	124
6”	DN150	159.0	140
6”	DN150	165.1	140
6”	DN150	168.3	140
8”	DN200	219.1	173
10”	DN250	267.4	229
10”	DN250	273.0	215
12”	DN300	318.5	254
12”	DN300	323.9	245
14”	DN350	355.6	280
14”	DN350	377.0	279
16”	DN400	406.4	305
16”	DN400	426.0	285
18”	DN450	457.2	342
18”	DN450	480.0	335
20”	DN500	508.0	381
24”	DN600	609.6	432
