Features:
Certificate: FM Approved / UL Listed / BSI / LPCB / NSF 61
Size: DN10 – DN80
Pressure: 2.5 Mpa / PN25
Dimensions: DIN EN 10242
Material: Malleable iron DIN EN 1562
Threaded: BSPP (ISO228) / BSPT (ISO7-1)
Surface: Black / Electrical galvanized / Hot-dip galvanized

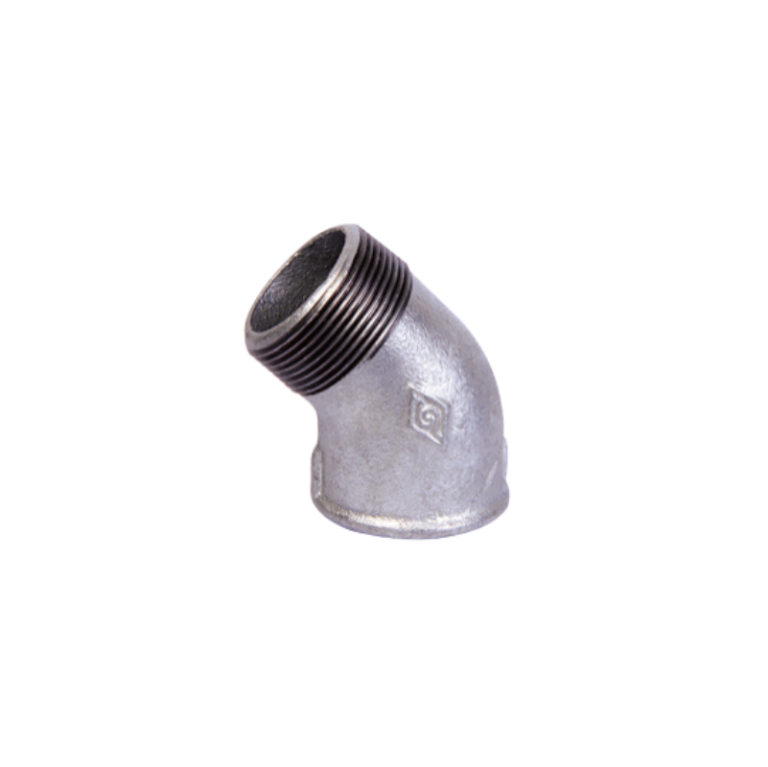

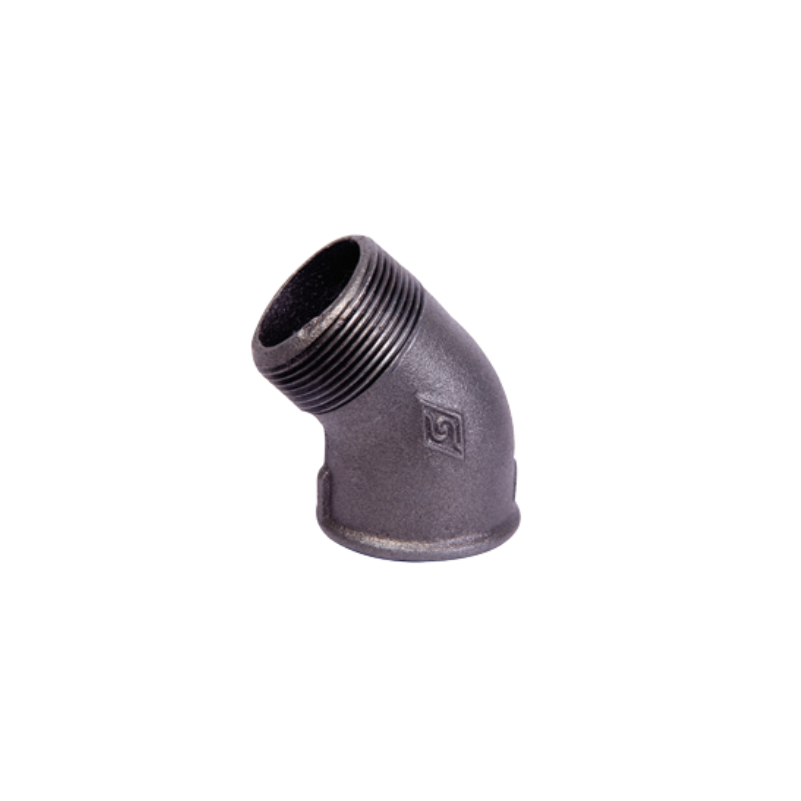

Malleable iron 45° street elbow is a elbow with 45 degree. One end is female threading and the other one end is male threading.

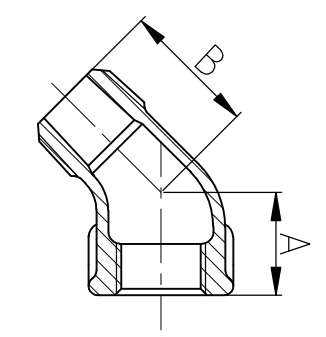

| Size | Inch | 3/8 | 1/2 | 3/4 | 1 | 11/4 | 11/2 |
| mm | 10 | 15 | 20 | 25 | 32 | 40 | |
| Dim. (mm) |
A | 20 | 22 | 25 | 28 | 33 | 36 |
| B | 25 | 28 | 32 | 37 | 43 | 46 | |
| Size | Inch | 2 | 21/2 | 3 | |||
| mm | 50 | 65 | 80 | ||||
| Dim. (mm) |
A | 43 | 49 | 59 | |||
| B | 55 | 69 | 78 |
Fluid tech group is the first company in northern China that specializes in the field of fire protection.
