Features:
Certificate: FM Approved / UL Listed / BSI / LPCB / NSF 61
Size: DN6 – DN100
Pressure: 2.5 Mpa / PN25
Dimensions: BS EN10242
Material: Malleable iron BS EN1562
Threaded: BSPP (ISO228) / BSPT (ISO7-1)
Surface: Black / Electrical galvanized / Hot-dip galvanized

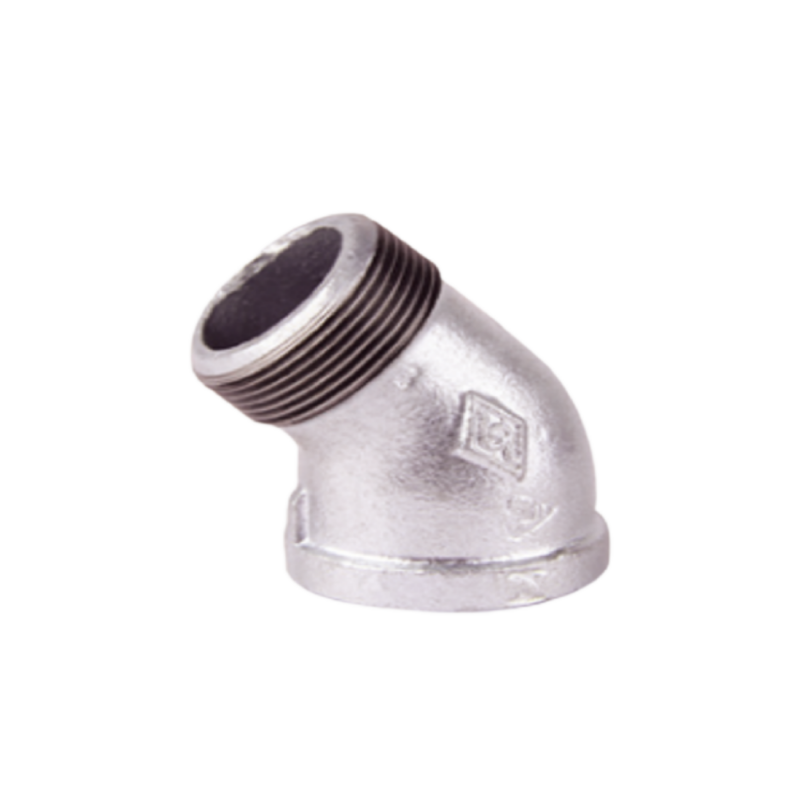

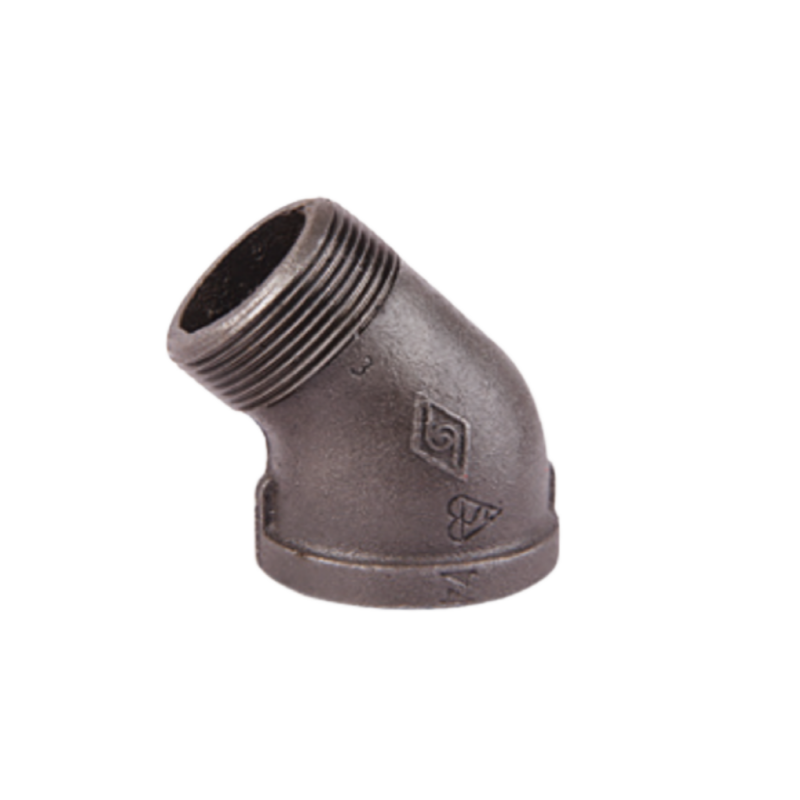

Malleable Iron 45° Street Elbow is used to connect the pipes with male thread. It can change the pipeline direction by 45 degree.
| SIZE | A (MM) | B (MM) | |
| 1/8″ | DN6 | 16 | 21 |
| 1/4” | DN8 | 18.5 | 24 |
| 3/8” | DN10 | 20 | 25 |
| 1/2” | DN15 | 22 | 28 |
| 3/4” | DN20 | 25 | 32 |
| 1” | DN25 | 28 | 37 |
| 1 1/4” | DN32 | 33 | 43 |
| 1 1/2” | DN40 | 36 | 46 |
| 2” | DN50 | 43 | 55 |
| 2 1/2” | DN65 | 49.5 | 65 |
| 3” | DN80 | 55 | 76 |
| 4” | DN100 | 66 | 94 |
Fluid tech group is the first company in northern China that specializes in the field of fire protection.
