Features:
Certificate: FM Approved / UL Listed / BSI / LPCB / NSF 61
Size: 3/8”*1/8”-8”*6”(DN10X6 – DN200X150)
Pressure: 2.5 Mpa / PN25
Dimensions: ANSI B16.3
Material: Malleable iron ASTM A197
Threaded: NPT ASME B1.20.1
Surface: Black / Electrical galvanized / Hot-dip galvanized

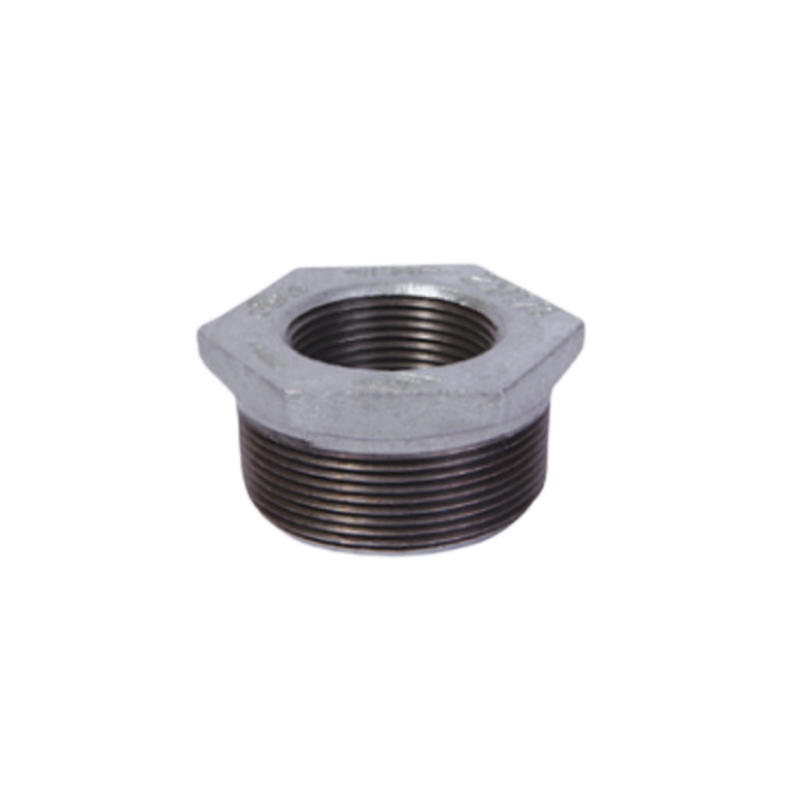

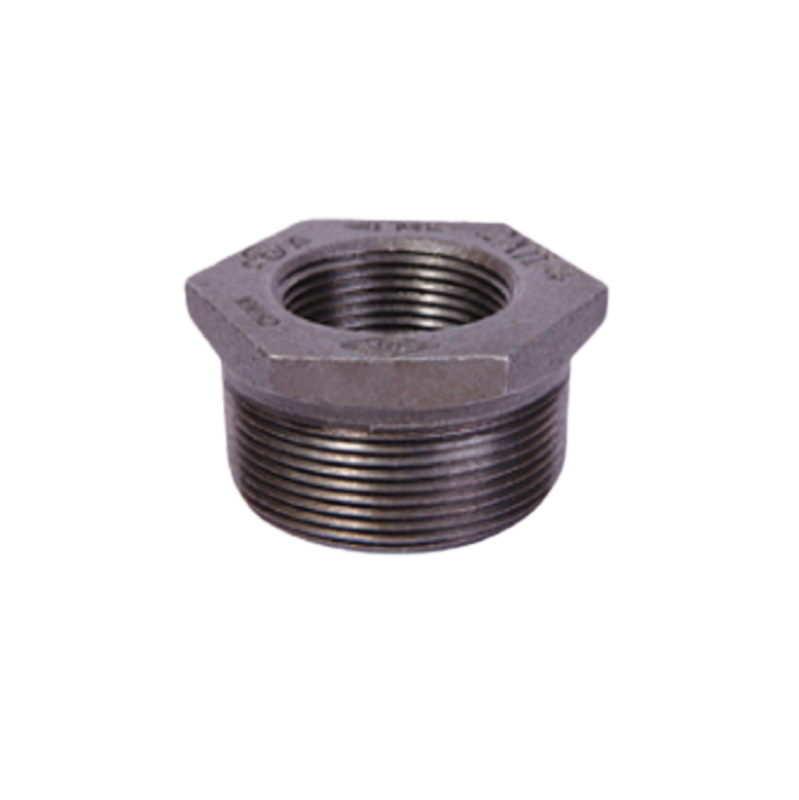

Malleable iron bushing is a hex-head pipe fittings with both male and female threaded connections, and it is used to join two pipes with different size.
| Size | Inch | 4X3 | 3/8X1/8 | 3/8X1/4 | 5X4 | 6X5 | 1/2X1/8 | 1/2X1/4 | ||||
| mm | 100X80 | 10X6 | 10X8 | 125X100 | 150X125 | 15X6 | 15X8 | |||||
| Dim. (mm) |
A | 43.7 | 16.3 | 16.3 | 46 | 51.6 | 19 | 19 | ||||
| Size | Inch | 1/2X3/8 | 3/4X1/8 | 3/4X1/4 | 3/4X3/8 | 3/4X1/2 | 1X1/2 | 1X3/4 | ||||
| mm | 15X10 | 20X6 | 20X8 | 20X10 | 20X15 | 25X15 | 25X20 | |||||
| Dim. (mm) |
A | 19 | 21.6 | 21.6 | 21.6 | 21.6 | 25.5 | 25.5 | ||||
| Size | Inch | 11/4X3/4 | 11/4X1 | 11/2X1 | 11/2X11/4 | 2X¹1/4 | 2X11/2 | |||||
| mm | 32X20 | 32X25 | 40X25 | 40X32 | 50X32 | 50X40 | ||||||
| Dim. (mm) |
A | 27.4 | 27.4 | 29 | 29 | 31 | 31 | |||||
| Size | Inch | 21/2X2 | 21/2X2 | 3X2 | 3X21/2 | 14X1/8 | 8X6 | |||||
| mm | 65X40 | 65X50 | 80X50 | 80X65 | 8X6 | 200X150 | ||||||
| Dim. (mm) |
A | 38.4 | 36.6 | 40.9 | 38.9 | 14.8 | 70 | |||||
Fluid tech group is the first company in northern China that specializes in the field of fire protection.
