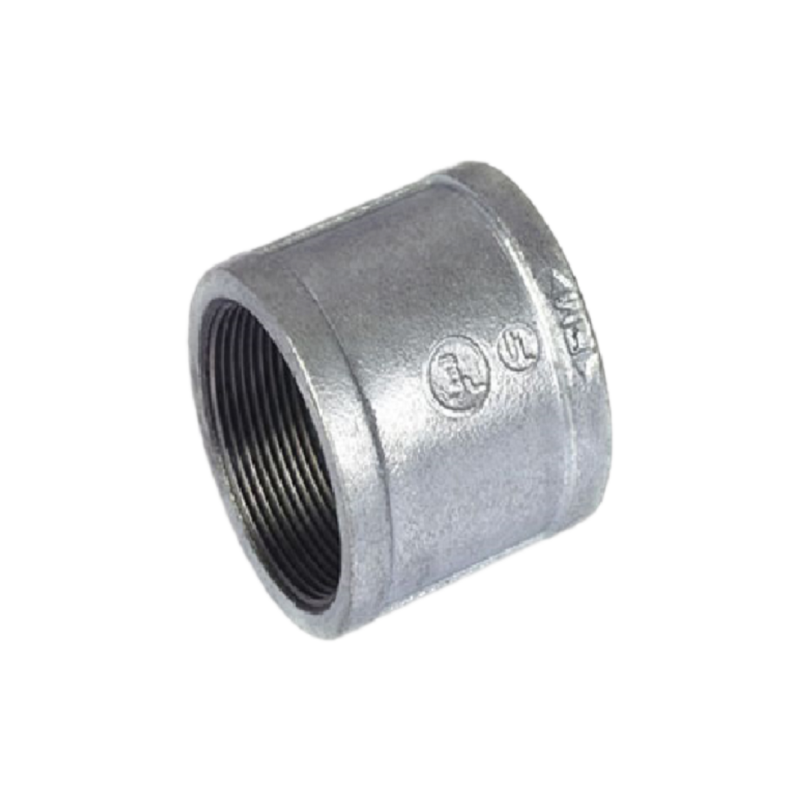

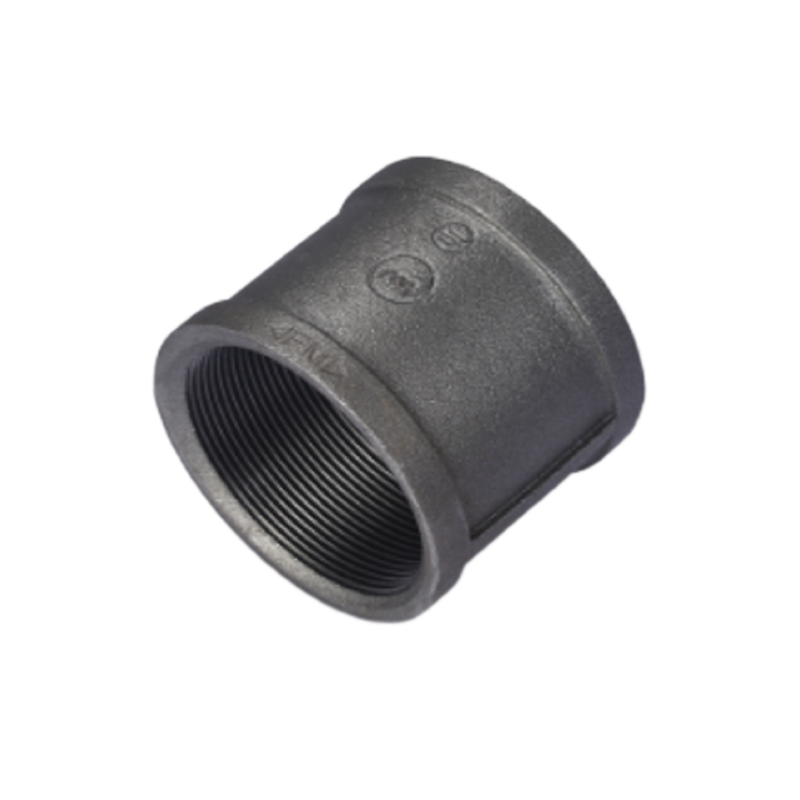

Malleable iron entire thread socket BS EN

Malleable iron entire thread socket BS EN

Features:

Certificate: FM Approved / UL Listed / BSI / LPCB / NSF 61

Size: DN8 – DN150

Pressure: 2.5 Mpa / PN25

Dimensions: BS EN10242

Material: Malleable iron BS EN1562

Threaded: BSPP (ISO228) / BSPT (ISO7-1)

Surface: Black / Electrical galvanized / Hot-dip galvanized

Product details

Malleable iron entire thread socket is entire threaded inside. Use couplers and sockets to simplify the piping installation process.

SIZE		A (MM)	PCS/CTN.
1/4″	8	26	800
3/8″	10	29	700
1/2″	15	35	450
3/4″	20	38	300
1″	25	44	180
1-1/4″	32	49	120
1-1/2″	40	53	72
2″	50	63	48
2-1/2″	65	72	32
3″	80	77.5	24
4″	100	91.5	10
6″	150	118	4

Related products

bmi threading reducing elbow

Malleable iron 90°reducing elbow BS EN

Malleable Iron Cross Over-Black

Malleable iron cross over BS EN

Malleable cast iron male and female taper seat union (2)

Malleable iron M&F union(taper seat) BS EN

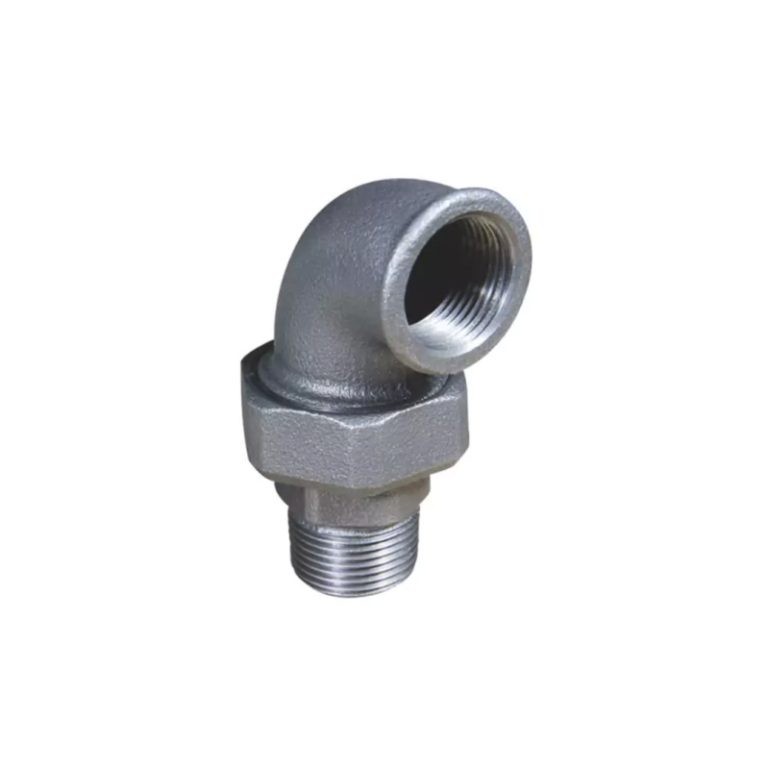

Black Malleable cast iron union elbow
