Features:
Certificate: FM Approved / UL Listed / BSI / LPCB / NSF 61
Size: 1/8”-4” (DN6 – DN100)
Pressure: class150 / class300
Dimensions: ANSI B16.3
Material: Malleable iron ASTM A197
Threaded: NPT ASME B1.20.1
Surface: Black / Electrical galvanized / Hot-dip galvanized

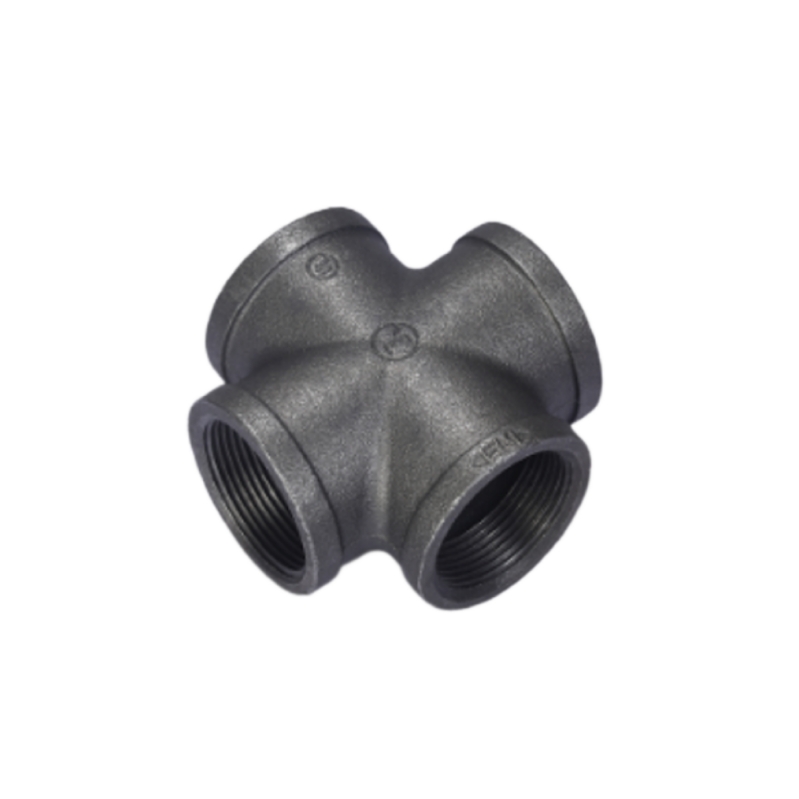

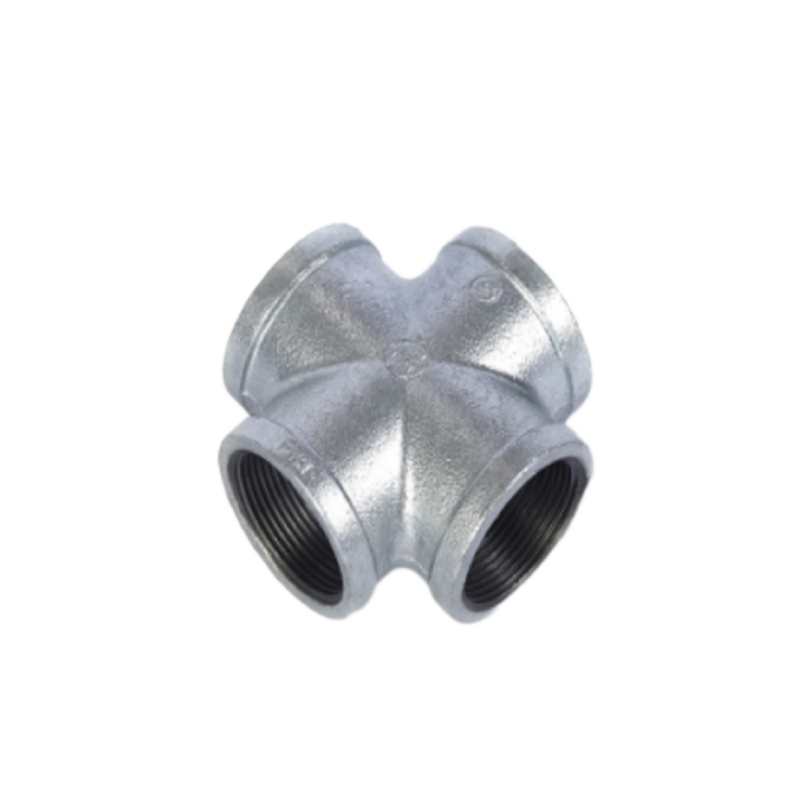

Malleable iron equal cross has a cross shape to get its name. The branch outlets are the same size to the main outlets, and it is used to create two branch pipelines to 90-degree direction.
| Size | Inch | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 |
| mm | 6 | 8 | 10 | 15 | 20 | 25 | |
| Dim. (mm) |
A | 17.5 | 20.6 | 24.1 | 28.5 | 33.3 | 38.1 |
| Size | Inch | 11/4 | 11/2 | 2 | 21/2 | 3 | 4 |
| mm | 32 | 40 | 50 | 65 | 80 | 100 | |
| Dim (mm) |
A | 44.5 | 49.3 | 57.2 | 68.6 | 78.2 | 96.3 |
