Features:
Certificate: FM Approved / UL Listed
Size: 1/8” – 4” (DN 6 – DN 100)
Pressure: 2.5 Mpa / PN25
Dimensions: DIN EN 10242
Material: Malleable iron DIN EN 1562
Threaded: BSPP (ISO228) / BSPT (ISO7-1)
Surface: Black / Electrical galvanized / Hot-dip galvanized

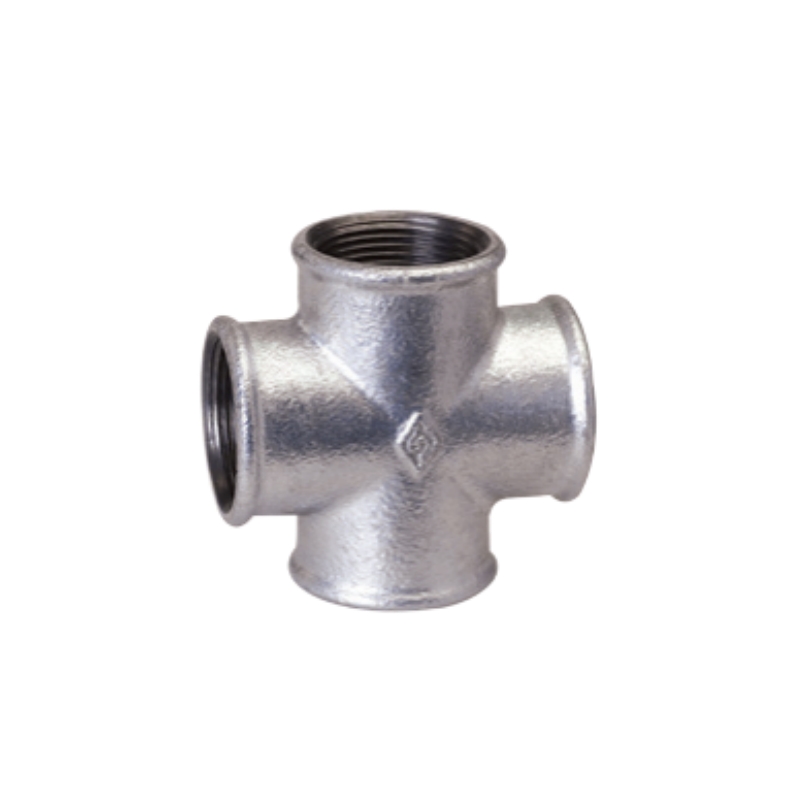

Malleable iron cross is a kind of connector that uses internal thread as a connection method to divide and merge four pipes with the same balanced cross-section horizontally and vertically.
| Size | Inch | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 |
| mm | 6 | 8 | 10 | 15 | 20 | 25 | |
| Dim. (mm) |
A | 19 | 21 | 25 | 28 | 33 | 38 |
| Size | Inch | 11/4 | 11/2 | 2 | 21/2 | 3 | 4 |
| mm | 32 | 40 | 50 | 65 | 80 | 100 | |
| Dim.
(mm) |
A | 45 | 50 | 58 | 69 | 78 | 96 |
