Features:
Certificate: FM Approved / UL Listed / BSI / LPCB / NSF 61
Size: DN10 – DN100
Pressure: 2.5 Mpa / PN25
Dimensions: BS EN10242
Material: Malleable iron BS EN1562
Threaded: BSPP (ISO228) / BSPT (ISO7-1)
Surface: Black / Electrical galvanized / Hot-dip galvanized

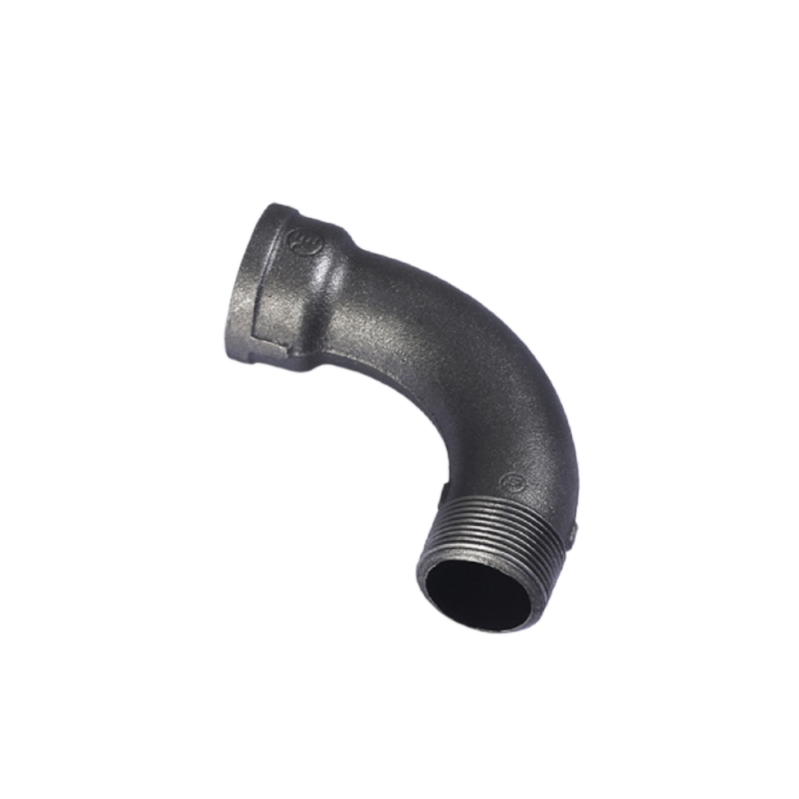

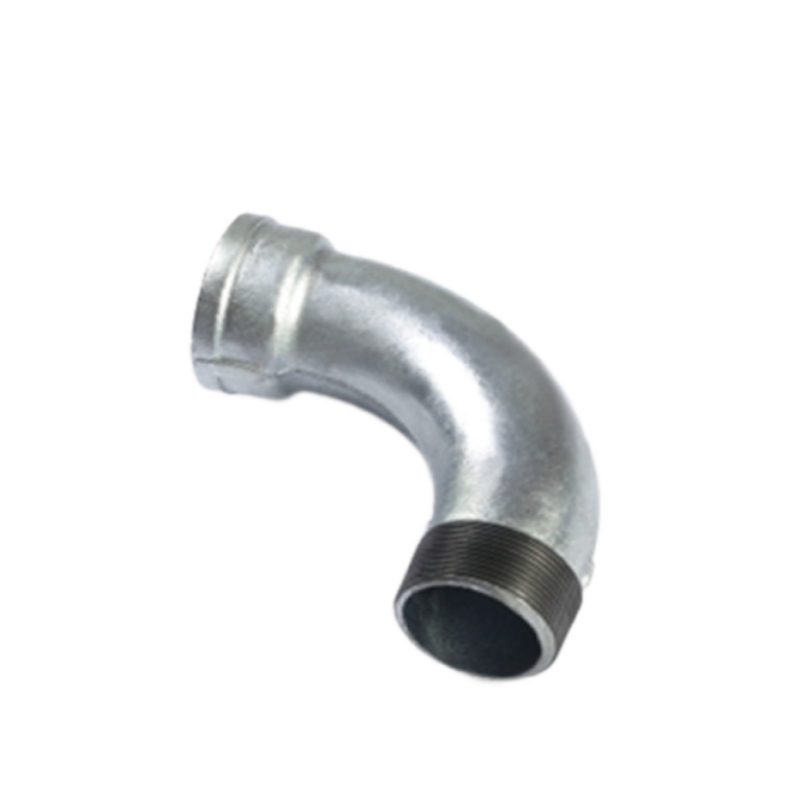

Malleable Iron M&F Bend is a versatile plumbing fitting designed for smooth and precise directional changes in piping systems.

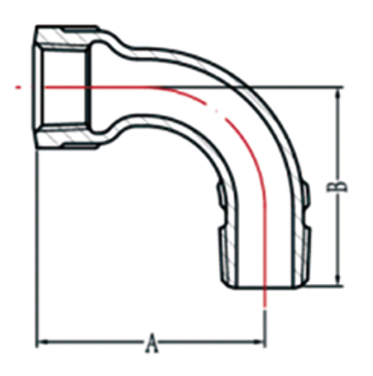

| SIZE | A (MM) | B (MM) | PCS/CTN. | |
| 3/8” | DN10 | 48 | 42 | 400 |
| 1/2” | DN15 | 55 | 48 | 280 |
| 3/4” | DN20 | 69 | 60 | 150 |
| 1” | DN25 | 85 | 75 | 80 |
| 1 1/4” | DN32 | 105 | 95 | 50 |
| 1 1/2” | DN40 | 116 | 105 | 24 |
| 2” | DN50 | 140 | 130 | 12 |
| 2 1/2” | DN65 | 176 | 165 | 8 |
| 3” | DN80 | 205 | 190 | 6 |
| 4” | DN100 | 260 | 245 | 2 |
Fluid tech group is the first company in northern China that specializes in the field of fire protection.
