Features:
Certificate: FM Approved / UL Listed / BSI / LPCB / NSF 61
Size: DN15 – DN50
Pressure: 2.5 Mpa / PN25
Dimensions: BS EN10242
Material: Malleable iron BS EN1562
Threaded: BSPP (ISO228) / BSPT (ISO7-1)
Surface: Black / Electrical galvanized / Hot-dip galvanized

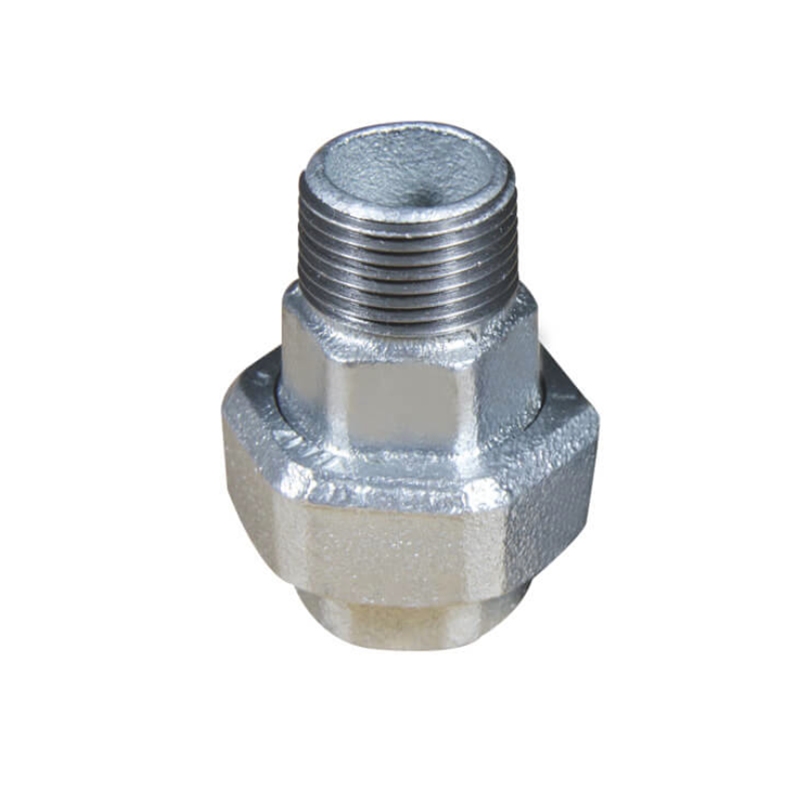

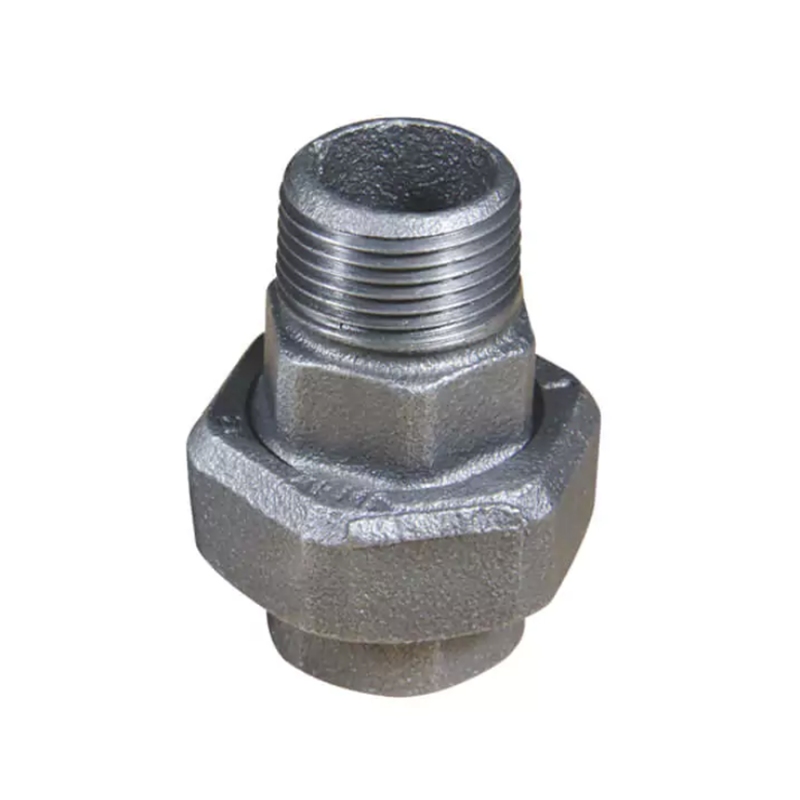

Malleable iron M&F union (flat seat) has female thread on one side and male thread on the other side. It can make pipe connection more convenient. It is the flat seat inside and include a rubber washer to achieve the sealing.
| SIZE | A (MM) | PCS/CTN. | |
| 1/2” | DN15 | 44 | 600 |
| 3/4” | DN20 | 45 | 380 |
| 1” | DN25 | 52 | 180 |
| 1 1/4” | DN32 | 57 | 120 |
| 1 1/2” | DN40 | 60 | 80 |
| 2” | DN50 | 66 | 48 |
Fluid tech group is the first company in northern China that specializes in the field of fire protection.
