Malleable iron plain plug BS EN

Features:

Certificate: FM Approved / UL Listed / BSI / LPCB / NSF 61

Size: DN8 – DN150

Pressure: 2.5 Mpa / PN25

Dimensions: BS EN10242

Material: Malleable iron BS EN1562

Threaded: BSPP (ISO228) / BSPT (ISO7-1)

Surface: Black / Electrical galvanized / Hot-dip galvanized

Chat Now

Product details

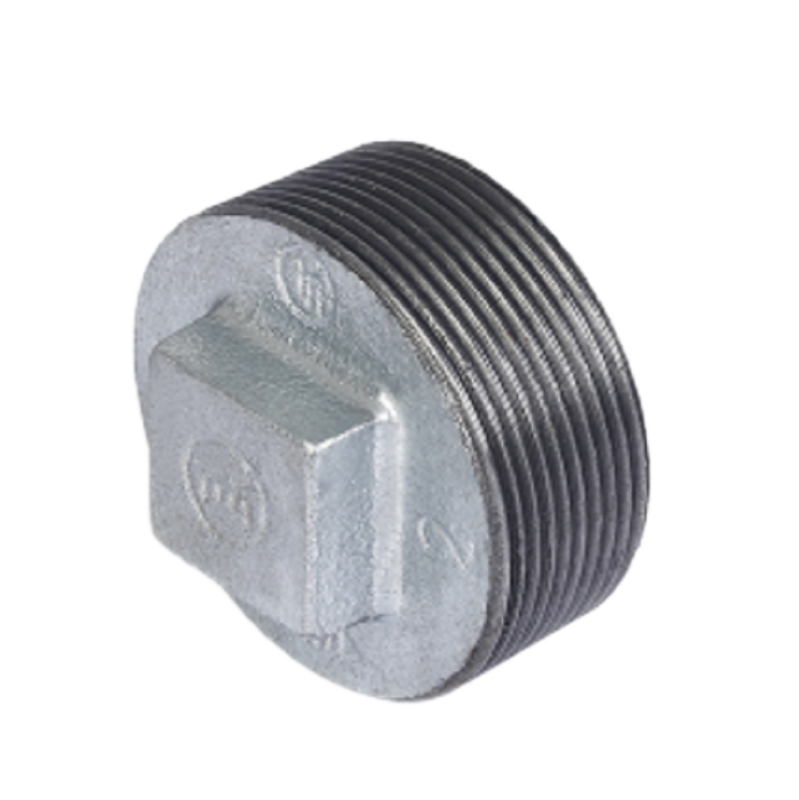

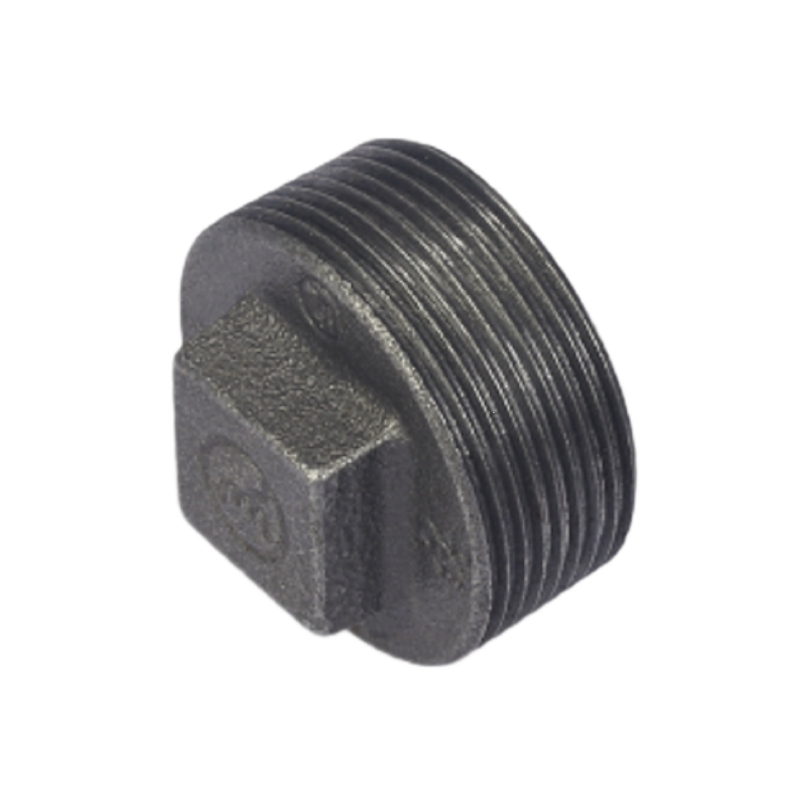

Malleable iron plain plug is used to mount at the pipe end by male threaded connection with protruded end at the other side, so to block the pipeline and form liquid or gas tight seal.

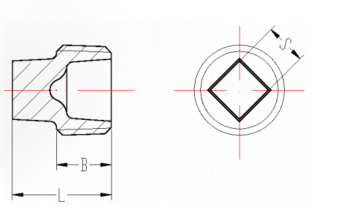

SIZE		L (MM)	B (MM)	S(MM)	PCS/CTN.
1/4”	DN8	15.5	10	6	2400
3/8”	DN10	17	10	7	2200
1/2”	DN15	22.5	13	10	1400
3/4”	DN20	24	14	12	800
1”	DN25	27	16.5	15	500
1 1/4”	DN32	30	20	18	300
1 1/2”	DN40	31	21	22	200
2”	DN50	36	25	26	120
2 1/2”	DN65	40.5	26.5	30	72
3”	DN80	45.5	29.5	34	64
4”	DN100	57	38	44	36
6”	DN150	65	42	65	/
