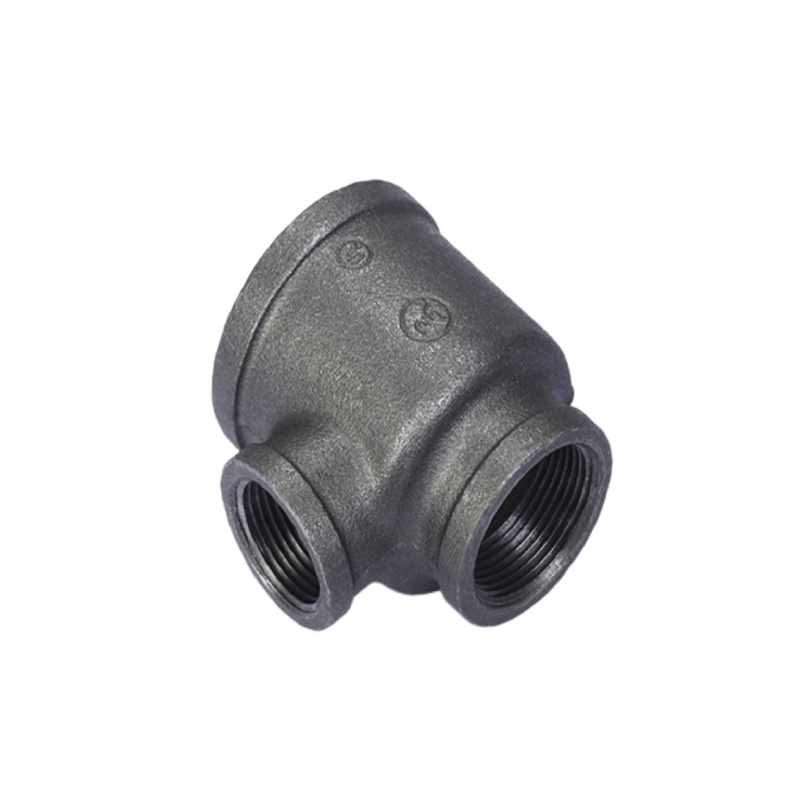

Malleable iron reducing tee (131R) BS EN

Features:

Certificate: FM Approved / UL Listed / BSI / LPCB / NSF 61

Size: DN20×15×15 – DN80×65×65

Pressure: 2.5 Mpa / PN25

Dimensions: BS EN10242

Material: Malleable iron BS EN1562

Threaded: BSPP (ISO228) / BSPT (ISO7-1)

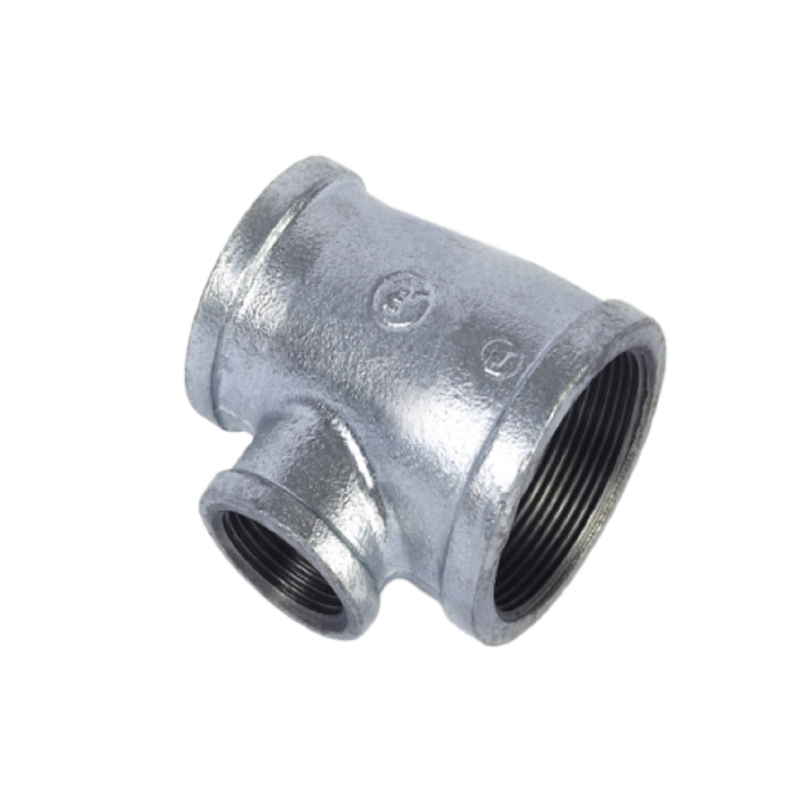

Surface: Black / Electrical galvanized / Hot-dip galvanized

Chat Now

Product details

Malleable iron reducing tee (131R) is a type of pipe fitting that connects two pipes with different diameters. It is often used in piping systems to accommodate changes in pipe diameter or direction.

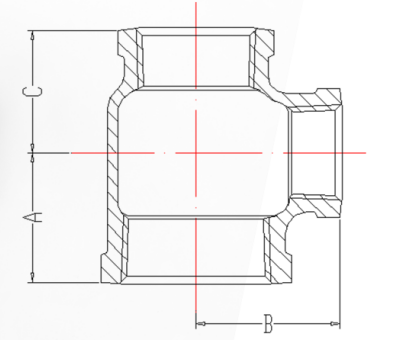

SIZE		A (MM)	B (MM)	PCS/CTN.
3/4″×1/2″×1/2″	20×15×15	29	27	120
1″×1/2″×3/4″	25×15×20	31	29	120
1″×3/4″×3/4″	25×20×20	34	32	120
1-1/4″×1/2″×1″	32×15×25	33	31	80
1-1/4″×3/4″×1″	32×20×25	36	34	60
1-1/4″×1″×1″	32×25×25	39	36	60
1-1/4″×1-1/4″×1″	32×32×25	44.5	41	40
1-1/2″×1/2″×1-1/4″	40×15×32	35	34	32
1-1/2″×3/4″×1-1/4″	40×20×32	37	36	36
1-1/2″×1″×1″	40×25×25	40	36	28
1-1/2″×1″×1-1/4″	40×25×32	41	40	20
1-1/2″×1-1/4″×1″	40×32×25	45	41	16
1-1/2″×1-1/4″×1-1/4″	40×32×32	45	44.5	12
1-1/2″×1-1/2″×1″	40×40×25	48.5	45	16
1-1/2″×2″×1-1/4″	40×50×32	54	53	10
2″×1/2″×1-1/2!	50×15×40	37	35	10
2″×3/4″×1-1/2″	50×20×40	40	37	6
2″×1″×1-1/4″	50×25×32	43	40	64
2″×1″×1-1/2″	50×25×40	42	40	68
2″×1-1/4″×1-1/4″	50×32×32	47	44.5	60
2″×1-1/4″×1-1/2″	50×32×40	47	45	40
2″×1-1/2″×1″	50×40×25	51	45	42
2″×1-1/2″×1-1/2″	50×40×40	51	48.5	40
2″×2″×1″	50×50×25	57	51	40
2-1/2″×1/2″×2″	65×15×50	40.5	37	36
2-1/2″×3/4″×2″	65×20×50	43.5	40	30
2-1/2″×1″×2″	65×25×50	45	42	24
2-1/2″×1-1/4″×1-1/2″	65×32×40	51.5	45	30
2-1/2″×1-1/4″×2″	65×32×50	51.5	47	30
2-1/2″×1-1/2″×2″	65×40×50	54.5	51	36
2-1/2″×2″×2	65×50×50	59.5	57	36
3″×1″×2-1/2″	80×25×65	49.5	47.5	36
3″×1-1/4″×2-1/2″	80×32×65	54.5	51.5	24
3″×1-1/2″×2-1/2″	80×40×65	57.5	54.5	24
3″×2″×2-1/2″	80×50×65	61.5	59.5	16
3″×2-1/2″×2-1/2″	80×65×65	71.5	68.5	16
