Features:
Certificate: FM Approved / UL Listed / BSI / LPCB / NSF 61
Size: DN15 – DN50
Pressure: 2.5 Mpa / PN25
Dimensions: BS EN10242
Material: Malleable iron BS EN1562
Threaded: BSPP (ISO228) / BSPT (ISO7-1)
Surface: Black / Electrical galvanized / Hot-dip galvanized

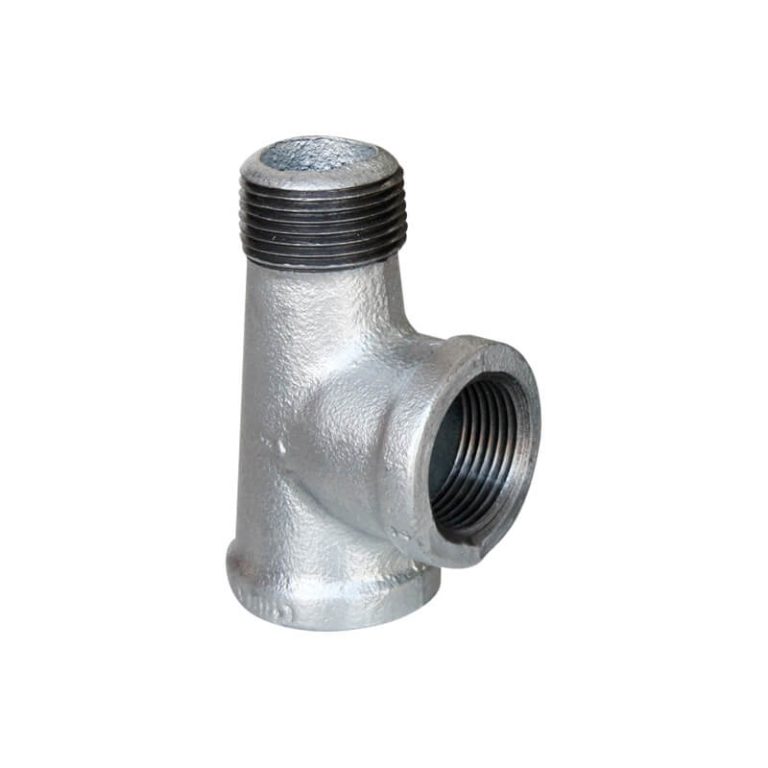

Malleable iron service tee has a T shape to get its name. The branch outlet has the same size with female thread to one main outlet, and another main outlet is same size but with male thread. It is used to create a branch pipeline to 90 degree direction.
| SIZE | A (MM) | B (MM) | |
| 1/2” | DN15 | 28.5 | 41.5 |
| 3/4” | DN20 | 33.5 | 48 |
| 1” | DN25 | 38 | 54.5 |
| 1 1/4” | DN32 | 44.5 | 62 |
| 1 1/2” | DN40 | 49.5 | 68.5 |
| 2” | DN50 | 57 | 83 |
Fluid tech group is the first company in northern China that specializes in the field of fire protection.
