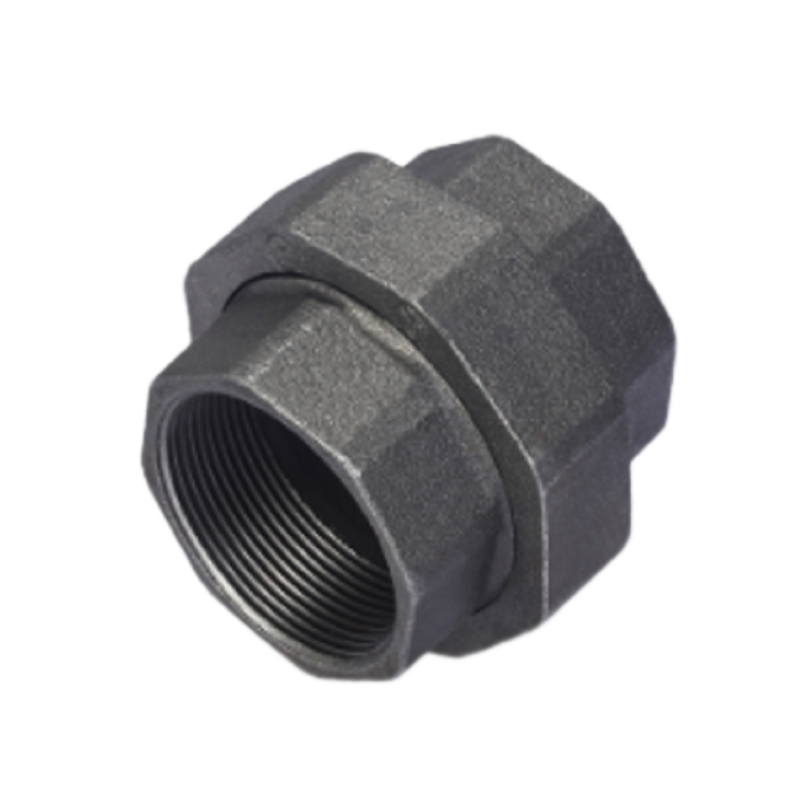

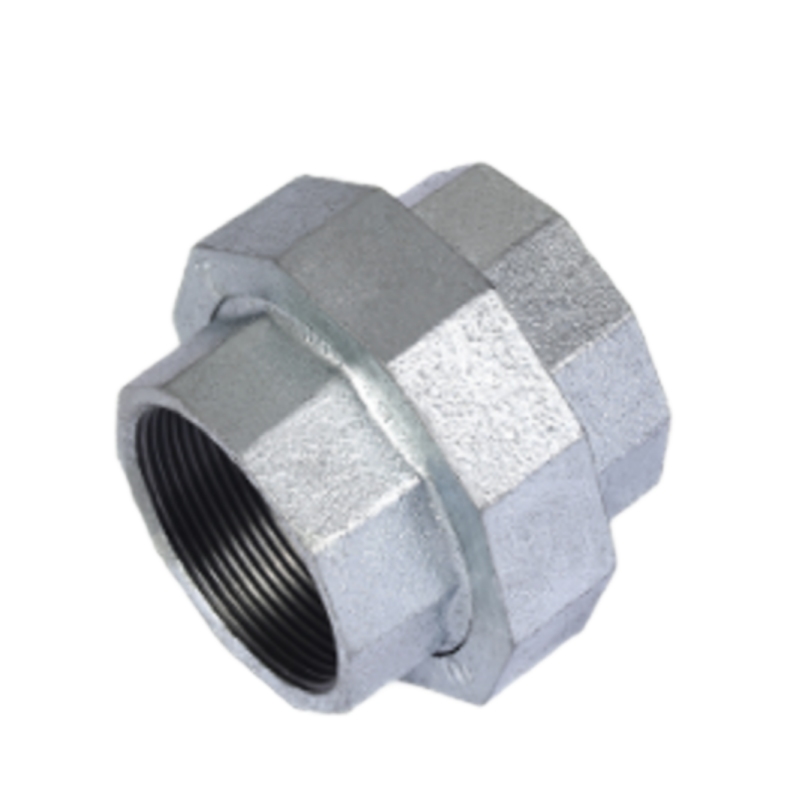

Malleable iron union(taper seat) BS EN

Features:

Certificate: FM Approved / UL Listed / BSI / LPCB / NSF 61

Size: DN8 – DN150

Pressure: 2.5 Mpa / PN25

Dimensions: BS EN10242

Material: Malleable iron BS EN1562

Threaded: BSPP (ISO228) / BSPT (ISO7-1)

Surface: Black / Electrical galvanized / Hot-dip galvanized

Chat Now

Product details

Malleable iron union(taper seat) is a detachable fitting with both female threaded connections. It consists of a tail or male part, a head or female part, and a union nut, with taper seat.

SIZE		A (MM)	PCS/CTN.
1/4”	DN8	42	200
3/8”	DN10	45	200
1/2”	DN15	47	180
3/4”	DN20	51.5	120
1”	DN25	57	88
1 1/4”	DN32	65	56
1 1/2”	DN40	71	36
2”	DN50	79	28
2 1/2”	DN65	85.5	12
3”	DN80	94.5	10
4”	DN100	110.5	6
