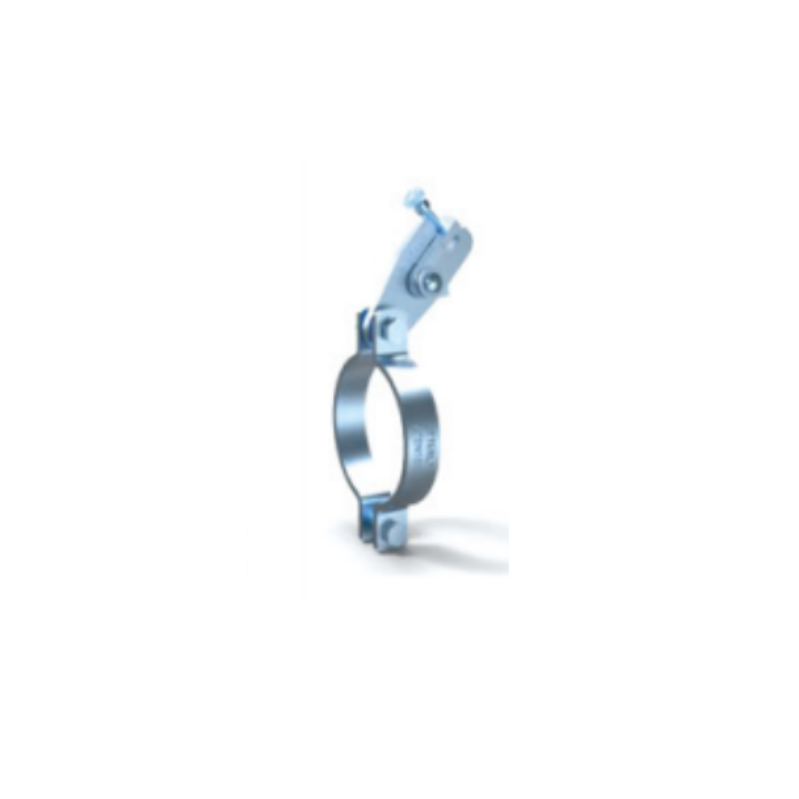

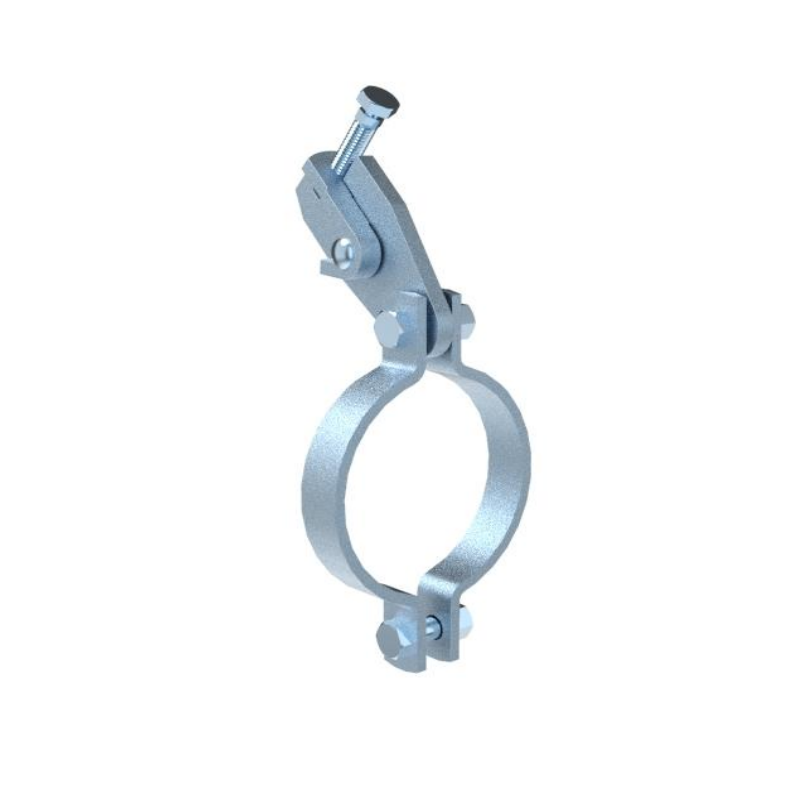

Pipe clamp – utt20

Features:

Function: Designed for bracing pipe against sway an seismic disturbance.The pipe attachment component of a sway brace system used in conjunction with a UTT Manufacturing structural attachment fitting.and joined together with a bracing pipe element forms a complete sway brace assembly.Sway brace assemblies are intended to be installed in accordance withNFPA13and the manufacturer’s installation instructions.

Type:Sprinkler Pipe Sch 10,Sch 40,GB/T3091,IS G3454

Size:Pipe size 2“(50)thru 8”(200)

Material:Carbon steel

Finish:Electro-galvanized

Chat Now

Product details

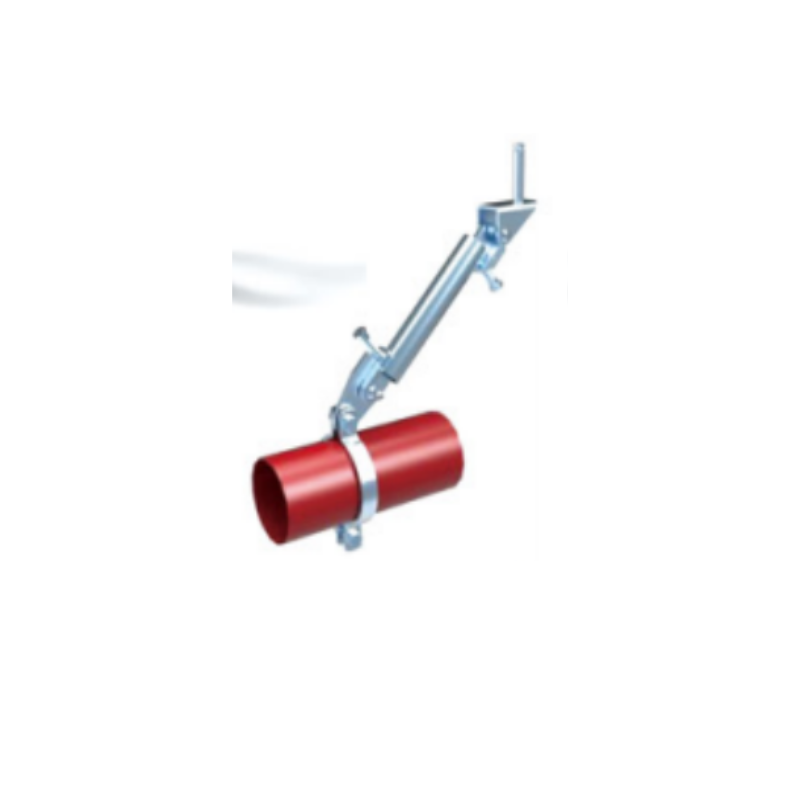

Pipe clamp – utt20 is one of SWAY-Brace Fitting is an accessory designed for building and industrial pipe support systems, mainly used to provide efficient and reliable earthquake-resistant support. This product can help fix pipes, cable trays, ducts and other related systems, effectively reducing the risk of structural damage and system failure in the event of earthquakes or other vibrations.

UL Maximum Design Load
Pipe Size		lbs.	kN	Wt.Each
				1″(25mm)Brace Pipe
				Ib.	kg
2	(50)	680	(3.02)	2.33	(1.06)
2%	(65)	680	(3.02)	2.42	(1.1)
3	(80)	680	(3.02)	2.55	(1.16)
4	(100)	680	(3.02)	2.73	(1.24)
5	(125)	1090	(4.84)	3.92	(1.78)
6	(150)	1370	(6.09)	4.29	(1.95)
8	(200)	1370	(6.09)	4.93	(2.24)

FM Maximum Design Load
Pipe Size		Horizontal load ratings installation angle 30°-44°		Horizontal load ratings installation angle 45°-59		Wt.Each
						1″(25mm) Brace Pipe

		lbs.	KN	lbs.	KN	lb.	kg
2	(50)	1070	(4.75)	1440	(6.40)	0.92	(0.42)
2/₂	(65)	840	(3.73)	1120	(4.98)	1.01	(0.46)
3	(80)	1030	(4.58)	1560	(6.93)	1.08	(0.49)
4	(100)	650	(2.89)	890	(3.95)	1.21	(0.55)
6	(150)	830	(3.69)	1250	(5.56)	1.52	(0.69)
8	(200)	880	(3.91)	1150	(5.11)	1.81	(0.82)
