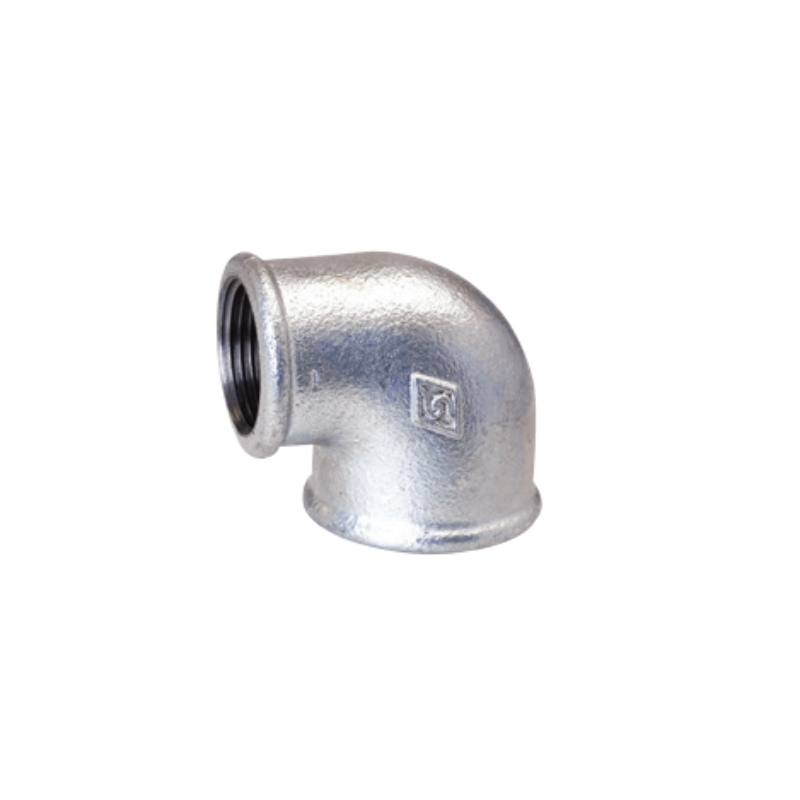

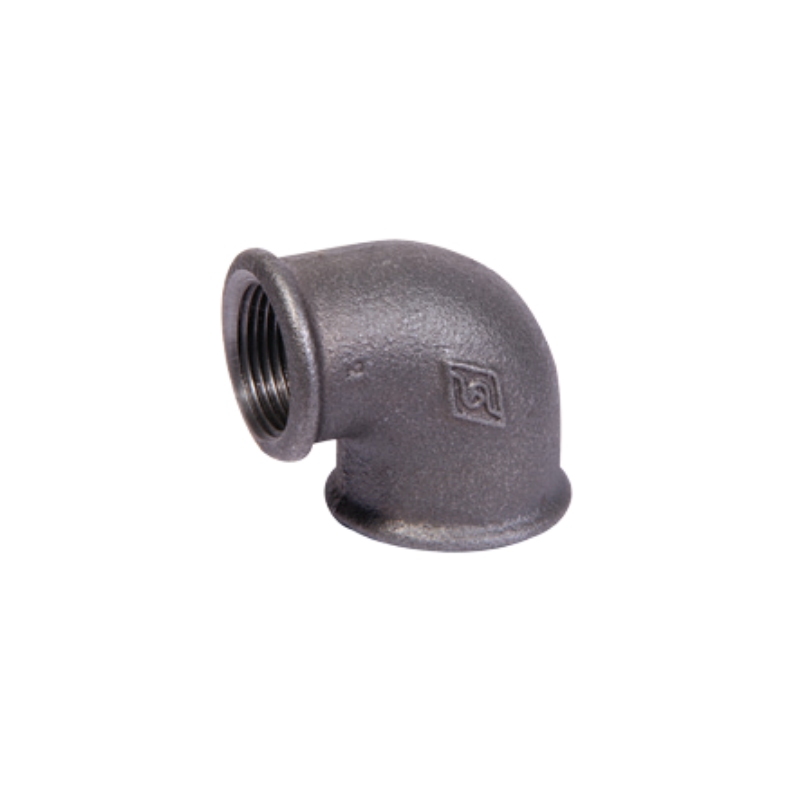

Malleable iron 90°reducing elbow beaded

Features:

Certificate: FM Approved / UL Listed / BSI / LPCB / NSF 61

Size: DN10X8 – DN100X80

Pressure: 2.5 Mpa / PN25

Dimensions: DIN EN 10242

Material: Malleable iron DIN EN 1562

Threaded: BSPP (ISO228) / BSPT (ISO7-1)

Surface: Black / Electrical galvanized / Hot-dip galvanized

Chat Now

Product details

Malleable iron 90°reducing elbow is used to connect two pipes of different size by threaded connection, so to make the pipeline turn 90-degree for changing the fluid flow direction.

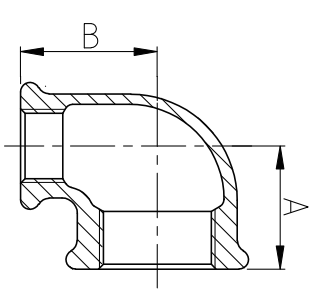

Size	Inch	3/8X1/4	1/2X1/4	1/2X3/8	3/4X3/8	3/4X12
	mm	10X8	15X8	15X10	20X10	20X15
Dim (mm)	A	23	26	26	28	30
	B	23	26	26	28	31
Size	Inch	1X1/2	1X3/4	11/4X1/2	11/4X3/4	11/4X1
	mm	25X15	25X20	32X15	32X20	32X25
Dim. (mm)	A	32	35	34	36	40
	B	34	36	38	41	42
Size	Inch	11/2X1/2	11/2X3/4	11/2X1	11/2X11/4	2X1/2
	mm	40X15	40X20	40X25	40X32	50X15
Dim. (mm)	A	36	39	42	46	38
	B	42	44	46	48	48
Size	Inch	2X3/4	2X1	2X1/4	2X11/2	21/2X1
	mm	50X2	50X25	50X32	50X4	65X25
Dim. (mm)	A	40	44	56	52	56
	B	50	52	58	55	63
Size	Inch	21/2X1/2	3X21/2	21/2X2	3X1/2	3X2
	mm	65X40	80X65	65X50	80X40	80X50
Dim (mm)	A	64	82	61	58	73
	B	69	85	66	72	78
Size	Inch	4X21/2	4X3
	mm	100X65	100X80
Dim. (mm)	A	78	84
	B	90	92
