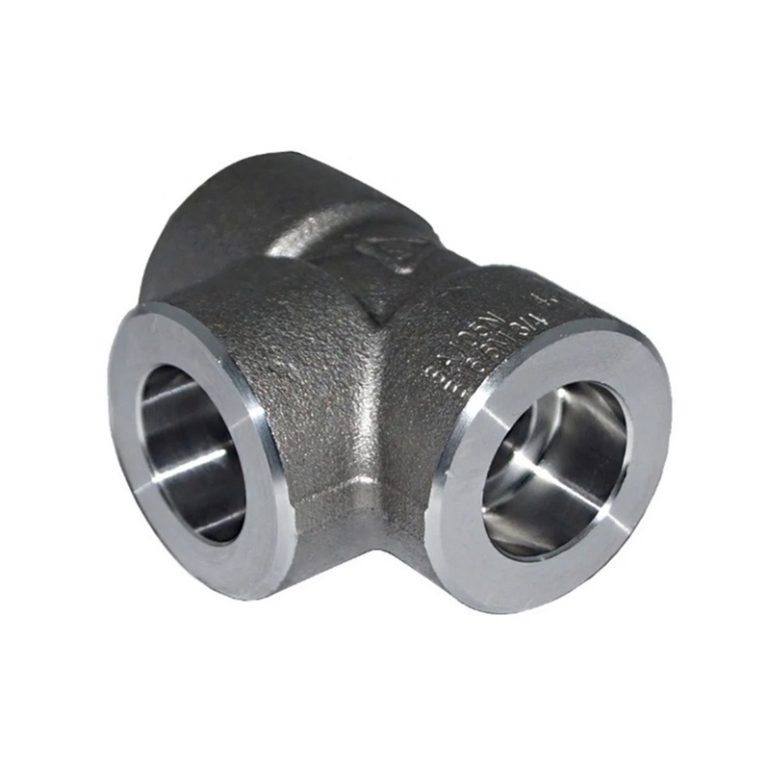

Socket weld tee

Features:

Certificate: ISO

American Standard: ASME B16.11

Material: Carbon steel ASTM A 105 / Stainless steel

Type: Forged fitting

W.pressure: Class 3000 / 6000 / 9000

Surface: Original / hot dip galvanized

Chat Now

Product details

SW tee is used to create branch connections between pipes in a piping system. The SW tee has a socket at the end into which the pipe is inserted and then welded around the circumference of the pipe where it meets the SW tee.

SIZE		Socket Bore Dia. B	Bore Dia. Of fittings D			Socket Wall C min			Body Wall G min			Depth of socket J min	Center to Bottom of socket A
NPS	DN	Socket Bore Dia. B	3000LB	6000 LB	9000 LB	3000 LB	6000 LB	9000 LB	3000 LB	6000 LB	9000 LB	Depth of socket J min	3000 LB	6000 LB	9000 LB
1/8”	6	10.9	6.1	3.2	–	3.18	3.43	–	2.41	3.15	–	9.5	11.0	11.0	–
1/4”	8	14.3	8.5	5.6	–	3.30	4.01	–	3.02	3.68	–	9.5	11.0	13.5	–
3/8”	10	17.7	11.8	8.4	–	3.50	4.37	–	3.20	4.01	–	9.5	13.5	15.5	–
1/2”	15	21.9	15.0	11.0	5.6	4.09	5.18	8.18	3.73	4.78	7.47	9.5	15.5	19.0	25.5
3/4”	20	27.3	20.2	14.8	10.3	4.27	6.04	8.56	3.91	5.56	7.82	12.5	19.0	22.5	28.5
1”	25	34.0	25.9	19.9	14.4	4.98	6.93	9.96	4.55	6.35	9.09	12.5	22.5	27.0	32.0
1-1/4”	32	42.8	34.3	28.7	22.0	5.28	6.93	10.62	4.85	6.35	9.70	12.5	27.0	32.0	35.0
1-1/2”	40	48.9	40.1	33.2	27.2	5.54	7.80	11.12	5.08	7.14	10.15	12.5	32.0	38.0	38.0
2”	50	61.2	51.7	42.1	37.4	6.04	9.50	12.12	5.54	8.74	11.07	16.0	38.0	41.0	54.0
2-1/2”	65	73.9	61.2	–	–	7.62	–	–	7.01	–	–	16.0	41.0	–	–
3”	80	89.9	76.4	–	–	8.30	–	–	7.62	–	–	16.0	57.0	–	–
4”	100	115.5	100.7	–	–	9.35	–	–	8.56	–	–	16.0	66.5	–	–
