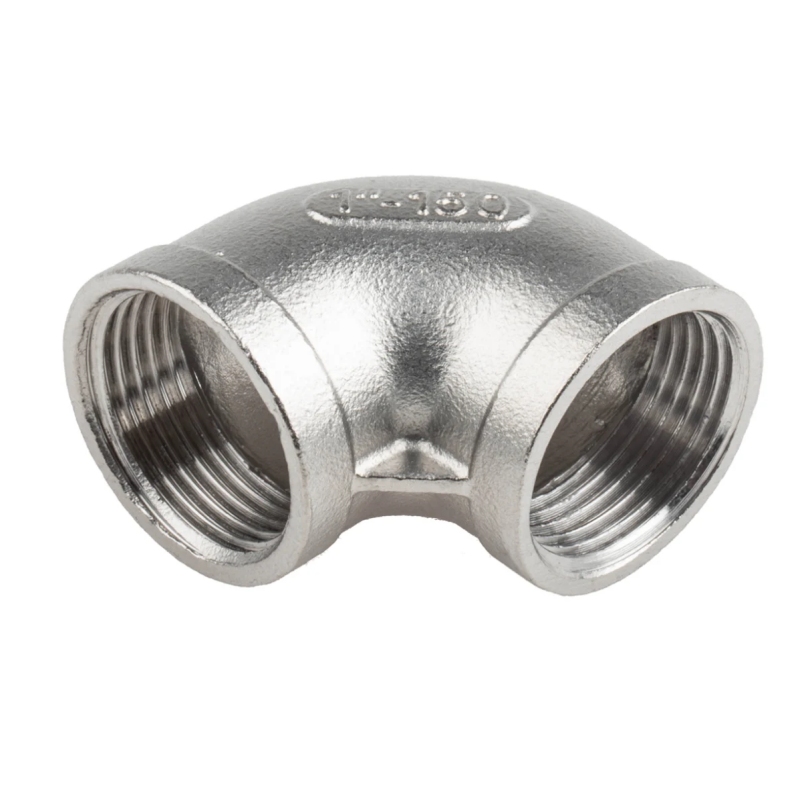

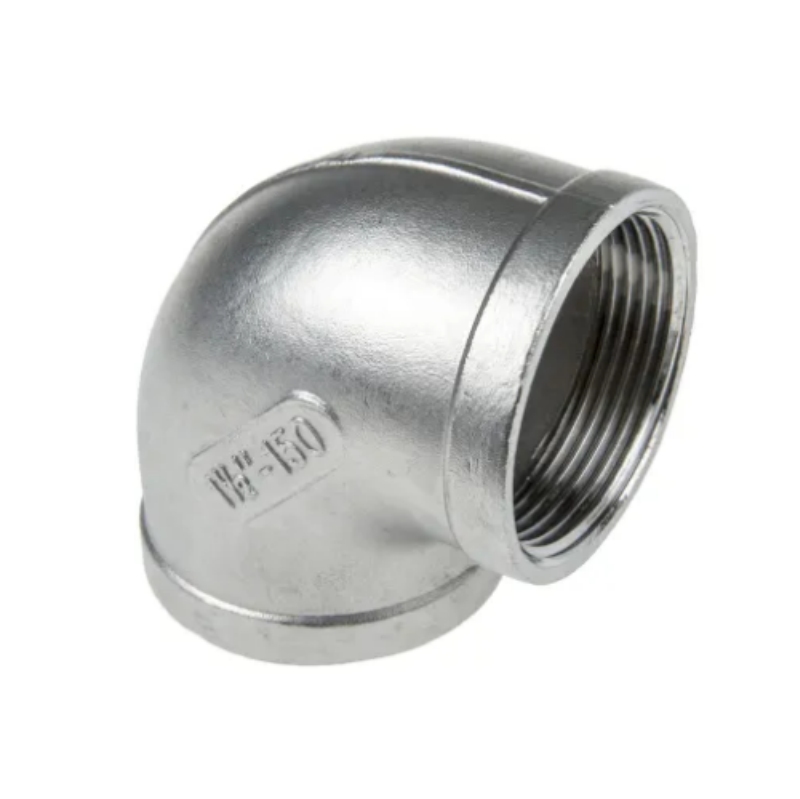

Stainless steel thread 90°elbow

Features:

Size: DN6-DN100 (1/8″-4″)

Pressure: CLASS 150 / CLASS300（10BAR-20BAR)

Dimensions: ISO 4144/SP114/DIN2986/EN10241/ASME A733

Material: ASTM351-CF8& CF8M,304 & 304L & 316 & 316L & 201

Threaded: ISO7-1/ISO228/DIN2999/BS21/ASME B1.20.1

Technology:Precision Investment Casting, Pipes SCH40 & SCH80

Chat Now

Product details

Stainless steel threaded fittings elbow 90°, commonly used in water and gas pipes, small diameter water pipes, compressed air pipes and low pressure steam pipes, etc., to change the direction of the fluid by 90°. Connected with the threaded pipe end to form a pipeline. The thread can be coated with appropriate adhesive (such as thick white paint, lead monoxide glycerol adhesive, etc.) to ensure sealing.

Inch	DN	L	A	L1	t	C
1/8″	6	17	16	8.2	2.5	5.2
1/4″	8	19.1	19	11	2.5	5.8
3/8″	10	22.8	22.6	10.4	3.7	6.5
1/2 “	15	28.5	28.2	10	2.2	6.5
3/4″	20	30.5	35	11.5	2.3	7.5
1″	25	36.5	42.8	15.3	2	10.9
11/4″	32	43.3	51.7	16.2	2	8.7
11/2″	40	48	59	18.2	2.3	9.4
2″	50	56.4	71.7	18.6	2.6	11
21/2″	65	67	90.2	22	3.5	13
3″	80	79.5	106.5	22	3.7	14.5
4″	100	94.8	133.8	27	3.5	15
