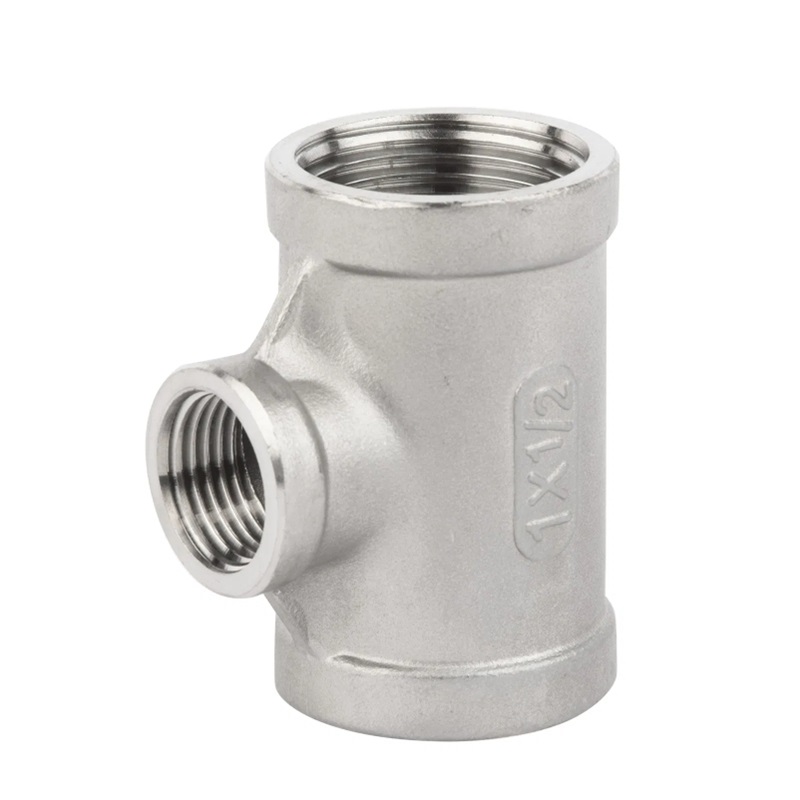

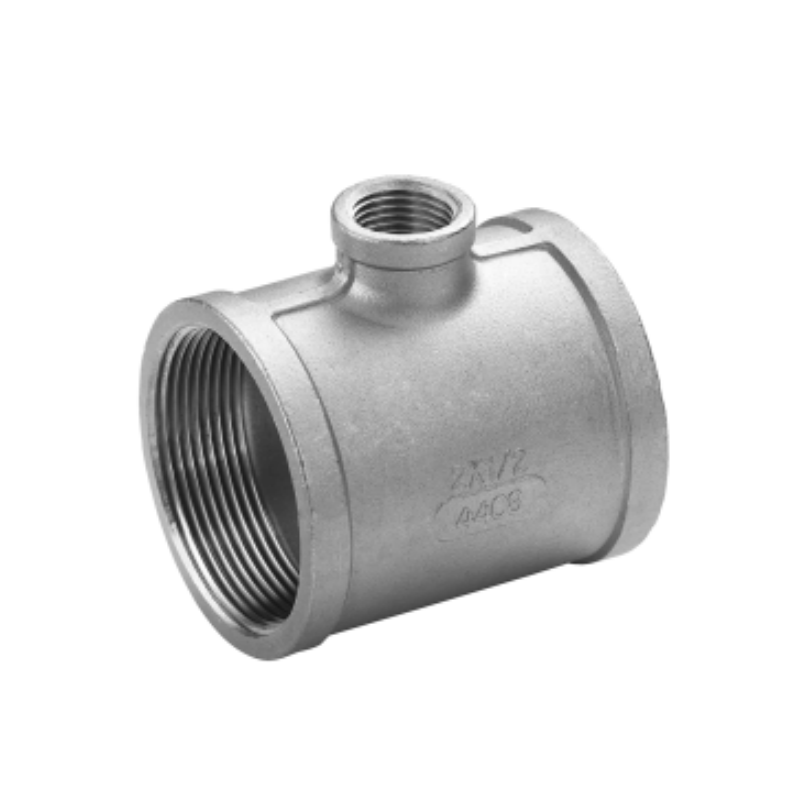

Stainless steel thread reducing tee

Features:

Size: DN8×6 -DN100×80 (1/4″×1/8″-4″×3″)

Pressure: CLASS 150 / CLASS300（10BAR-20BAR)

Dimensions: ISO 4144/SP114/DIN2986/EN10241/ASME A733

Material: ASTM351-CF8& CF8M,304 & 304L & 316 & 316L & 201

Threaded: ISO7-1/ISO228/DIN2999/BS21/ASME B1.20.1

Technology:Precision Investment Casting, Pipes SCH40 & SCH80

Chat Now

Product details

Stainless Steel Threaded Reducing Tee is commonly used in water and gas pipes, small diameter water pipes, compressed air pipes and low pressure steam pipes, etc. to increase the flow, the branch size is different, and change the direction of the fluid by 90 degrees. According to different materials, it is generally divided into SS304 Reducing Tee, SS316 Reducing Tee, SS304L/316L Reducing Tee. Stainless steel threaded pipe fittings are strictly manufactured in accordance with SO4144 and SP114 standards or customer design dimensions. All pipe fittings are inspected by professional quality control personnel according to applicable standards and specifications.

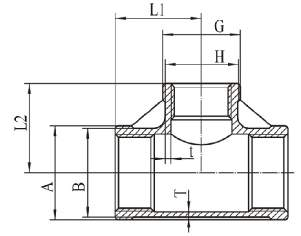

Inch	DN	L1	L2	G	H	t	A	B	T
1/4″×1/8″	8×6	18	18	14	13	1.6	18	16.5	1.6
3/8″×1/4″	10×8	20	22	18	16.5	1.6	21.5	20	1.6
1/2″×1/4″	15×8	24	24	18	16.5	1.6	26	24.5	1.8
1/2″×3/8″	15×10	26	25	21.5	20	1.6	26	24.5	1.8
3/4″×3/8″	20×10	28	28	21.5	20	1.6	31.5	30	1.8
3/4″×1/2″	20×15	29	30	26	24.5	1.8	31.5	30	1.8
1″×1/2″	25×15	32	33	26	24.5	1.8	39	37.5	2
1″×3/4″	25×20	34	35	31.5	30	1.8	39	37.5	2
11/4″×1/2″	32×15	33.2	38.5	27	25	1.8	49.5	47	2.3
11/4″×3/4″	32×20	38	40	31.5	30	1.8	48	46.5	2.4
11/4″×1″	32×25	40	42	39	37.5	2	48	46.5	2.4
11/2″×1/2″	40×15	35	41	27	25	1.8	56	53.5	2.3
11/2″×3/4″	40×20	39	41.7	32	30.5	1.8	55	53.5	2.5
11/2″×1″	40×25	41	45	39	37.5	2	55	53	2.5
11/2″×11/4″	40×32	45	48	48	46.5	2.4	55	53	2.5
2″×3/4″	50×20	40	50	31.5	30	1.8	67.5	65.5	2.8
2″×1″	50×25	42	52	39	38	2	67.5	65.5	2.8
2″×11/4″	50×32	48	54	48	46.5	2.4	67.5	65.5	2.8
2″×11/2″	50×40	52	55	55	53	2.5	67.5	65.5	2.8
21/2″×3/4″	65×20	45	59	31.5	30	1.8	83.5	82	3.3
21/2″×11/2	65×40	55	62	55	53	2.5	83.5	82	3.3
21/2″×2″	65×50	60	65	67.5	65.5	2.8	83.5	82	3.3
3″×2″	80×50	62	72	67.5	65.5	2.8	98.5	95.5	3.8
3″×21/2″	80×65	72	75	84	82	3.3	98.5	95.5	3.8
4″×21/2″	100×65	78	90	84	82	3.3	124.5	121.5	4.3
4″×3″	100×80	83	91	98.5	95.5	3.7	124.5	121.5	4.3
