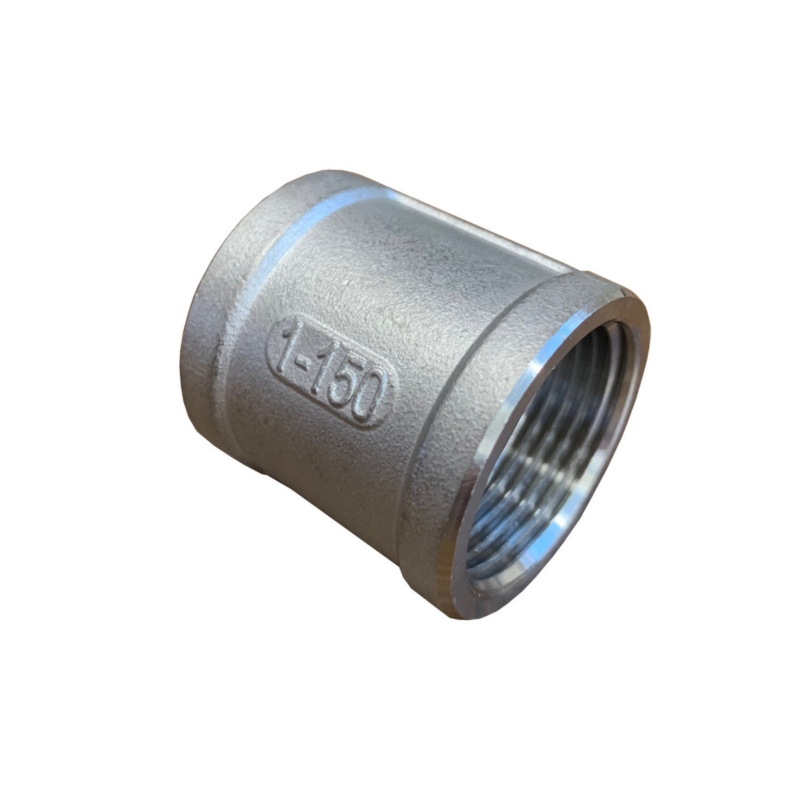

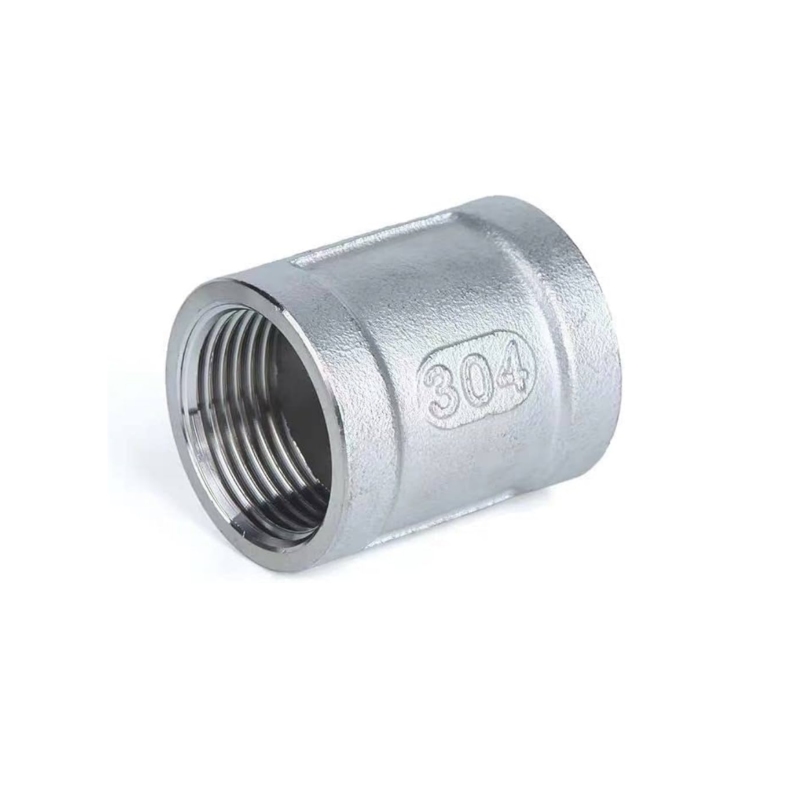

Stainless steel thread socket

Features:

Size: DN6-DN100 (1/8″-4″)

Pressure: CLASS 150 / CLASS300（10BAR-20BAR)

Dimensions: ISO 4144/SP114/DIN2986/EN10241/ASME A733

Material: ASTM351-CF8& CF8M,304 & 304L & 316 & 316L & 201

Threaded: ISO7-1/ISO228/DIN2999/BS21/ASME B1.20.1

Technology:Precision Investment Casting, Pipes SCH40 & SCH80

Chat Now

Product details

Stainless steel threaded socket banded is a short pipe used to connect two pipes. It is also called an Stainless Steel Coupling or external joint. Socket are widely used in civil construction, industry, agriculture and other fields because of their convenience.According to different materials, it is generally divided into SS304 Stainless Steel Threaded Socket, SS316 Stainless Steel Threaded Socket, SS304L/316L Stainless Steel Threaded Socket. Stainless steel threaded pipe fittings are manufactured strictly in accordance with SO4144 and SP114 standards or customer design dimensions. All pipe fittings are inspected by professional quality control personnel according to applicable standards and specifications.

Inch	DN	L	B	t
1/8″	6	17	13	1.6
1/4″	8	24	16.5	1.6
3/8″	10	25	20	1.6
1/2 “	15	32	24.5	1.8
3/4″	20	35	30	1.8
1″	25	55	37.5	2
11/4″	32	65	46.5	2.4
11/2″	40	65	53	2.5
2″	50	70	65.5	2.8
21/2″	65	75	82	3.3
3″	80	80	95.5	3.8
4″	100	92	121.5	4.3
