Butt weld 90° elbow （long radius,R=1.5 D)

Butt weld 90° elbow （long radius,R=1.5 D)

คุณสมบัติ:

Certificate: ISO

American Standard: ASME B16.9

EN / BS Standard: EN 10253-1 / EN 10253-2 / EN 10253-3

Material -1: Carbon steel ASTM A234, WPB, P265GH, P235TR2

Material -2: Stainless steel SS ASTM A403, SS 304 , SS 316

Type: Long radius (LR) 3D, R=1.5D

W.pressure: Equal to same seamless pipe

End: Straight edges / bevelled for welding

Surface: Original / Sandblast / Black painting / hot dip galvanized

พูดคุยตอนนี้

รายละเอียดสินค้า

Butt weld 90° elbow (Long radius) is used to change the direction of a pipeline by 90 degrees and connected by butt welding.

American Standard: ASME B16.9

ขนาด			T (mm)			A (mm)
NPS	ดีเอ็น	จาก (มม.)	Sch10	Sch40	Sch80	A (mm)
1/2”	DN 15	21.3	2.11	2.77	3.73	38
3/4”	DN 20	26.7	2.11	2.87	3.91	38
1”	DN 25	33.4	2.77	3.38	4.55	38
1-1/4”	DN 32	42.2	2.77	3.56	4.85	48
1-1/2”	DN 40	48.3	2.77	3.68	5.08	57
2”	DN 50	60.3	2.77	3.91	5.54	76
2-1/2”	DN 65	73.0	3.05	5.16	7.01	95
3”	DN 80	88.9	3.05	5.49	7.62	114
4”	DN 100	114.3	3.05	6.02	8.56	152
5”	DN 125	141.3	3.40	6.55	9.53	190
6”	DN 150	168.3	3.40	7.11	10.97	229
8”	DN 200	219.1	3.76	8.18	12.7	305
10”	DN 250	273.0	4.19	9.27	15.09	381
12”	DN 300	323.8	4.57	10.31	17.48	457
14”	DN 350	355.6	6.35	11.13	19.05	533
16”	DN 400	406.4	6.35	12.7	21.44	610
18”	DN 450	457	6.35	14.27	23.83	686
20”	DN500	508	6.35	15.09	26.19	762
24”	DN 600	610	6.35	17.48	30.96	914

Note: Thickness can be Sch5, Sch10, Sch30, Sch40, Sch80, Sch120, Sch160, STD, XS, XXS, 5S, 10S, 40S, 80S, etc.

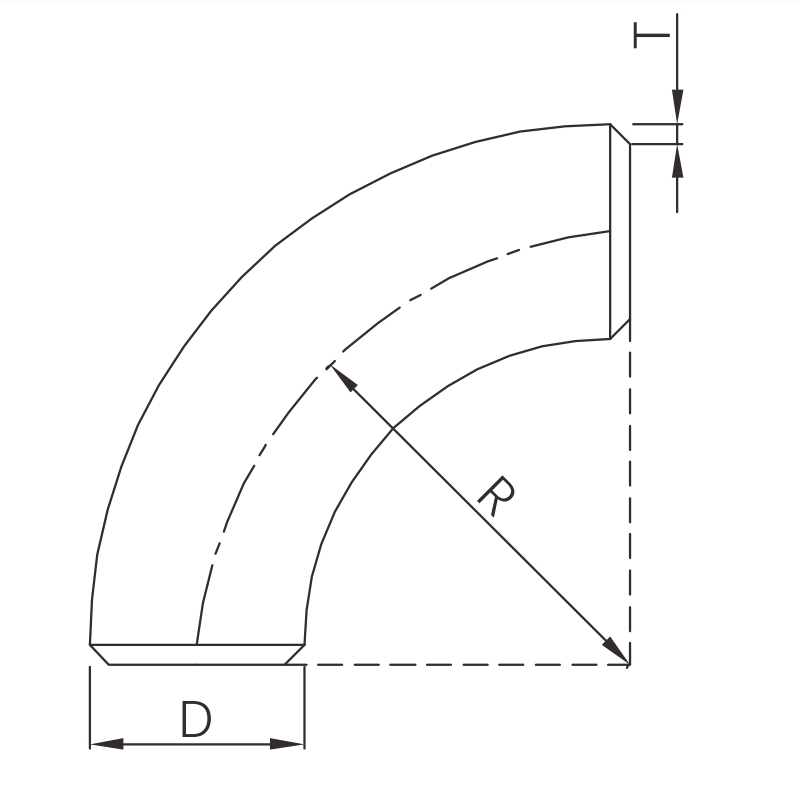

EN / BS Standard: EN 10253 (draw -2)

ขนาด			T (mm)	R (mm)
NPS	ดีเอ็น	จาก (มม.)	T (mm)	R (mm)
1/2”	DN 15	21.3	2.0 / 2.6 / 3.2 / 4.0 / 5.0 / 7.1	38
3/4”	DN 20	26.9	2.3 / 2.6 / 3.2 / 4.0 / 4.5 / 5.6 / 8.0	38
1”	DN 25	33.7	2.6 / 3.2 / 4.0 / 4.5 / 5.6 / 6.3 / 8.8	38
1-1/4”	DN 32	42.4	2.6 / 3.6 / 4.0 / 5.0 / 6.3 / 8.0 / 10.0	48
1-1/2”	DN 40	48.3	2.6 / 3.6 / 4.0 / 5.0 / 6.3 / 8.0 / 10.0	57
2”	DN 50	60.3	2.9 / 3.6 / 4.0 / 5.6 / 7.1 / 8.8 / 11.0	76
2-1/2”	DN 65	76.1	2.9 / 3.6 / 5.6 / 7.1 / 8.0 / 10.0 / 14.2	95
3”	DN 80	88.9	3.2 / 4.0 / 5.6 / 8.0 / 8.8 / 11.0 / 16.0	114
4”	DN 100	114.3	3.6 / 4.5 / 6.3 / 8.8 / 11.0 / 14.2 / 17.5	152
5”	DN 125	139.7	4.0 / 5.0 / 6.3 / 10.0 / 12.5 / 16.0 / 20.0	190
6”	DN 150	165.1/168.3	4.0 / 4.5 / 5.6 / 7.1 / 11.0 / 14.2 / 17.5 / 22.2	229
8”	DN 200	219.1	4.5 / 6.3 / 7.1 / 8.0 / 12.5 / 16.0 / 17.5 / 22.2	305
10”	DN 250	273.0	5.0 / 6.3 / 8.8 / 10.0 / 12.5 / 16.0 / 22.2 / 30.0	381
12”	DN 300	323.9	5.6 / 7.1 / 8.8 / 10.0 / 12.5 / 17.5 / 25.0 / 32.0	457
14”	DN 350	355.6	5.6 / 8.0 / 10.0 / 12.5 / 16.0 / 20.0 / 28.0 / 36.0	533
16”	DN 400	406.4	6.3 / 8.8 / 10.0 / 12.5 / 17.5 / 22.2 / 30.0 / 40.0	610
18”	DN 450	457	6.3 / 10.0 / 11.0 / 12.5 / 17.5 / 22.2 / 32.0 / 45.0	686
20”	DN500	508	6.3 / 10.0 / 11.0 / 12.5 / 17.5 / 25.0 / 36.0 / 50.0	762
24”	DN 600	610	6.3 / 10.0 / 12.5 / 17.5 / 25.0 / 30.0 / 45.0 / 60.0	914
